165511480 | DLV5840U | Inline Electric Screwdriver, 1.3 - 3.5 in lbs, 600 rpm, Lever Start

(0)No Reviews yet
$375.25
$395
$19.75
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

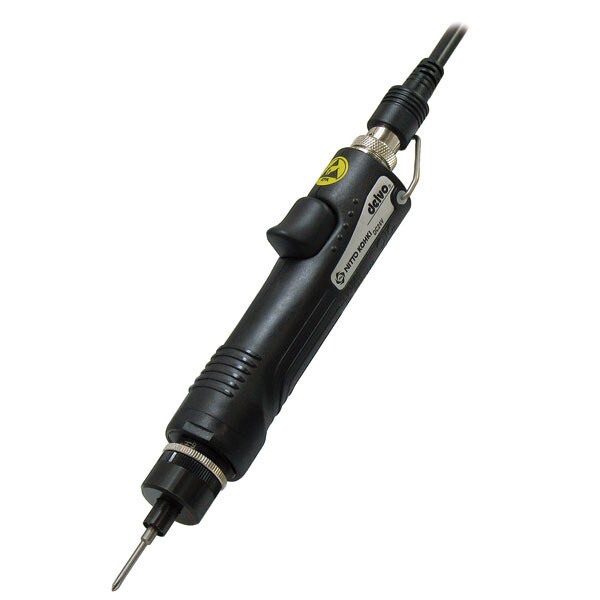

Introducing the Nitto Kohki Delvo DLV5840U Inline Electric Screwdriver, a remarkable assembly tool designed to redefine precision and efficiency in your production line. Engineered by Nitto Kohki, a leading name in power tools, this electric screwdriver combines advanced features with ergonomic design to elevate your fastening operations to new heights.

  • Min Torque(In Lb): 1.3
  • Max Torque(In Lb): 3.5
  • Drive Size: 4 mm
  • Free Speed(RPM): 600
  • Design: Inline
  • Voltage: 40V

Controller/Power Supply DLC0350LU sold separately.

Back

Features & Benefits

  • Inline Configuration: The DLV5840U boasts an inline design, providing exceptional balance and control during fastening tasks. Its streamlined profile allows for easy access in confined spaces, making it ideal for intricate assembly applications.
  • Enhanced Accuracy: With a torque range of 1.3 - 3.5 in lbs (0.15 - 0.4 Nm), the DLV5840U delivers precise and repeatable fastening results. Its high accuracy ensures consistent torque application, minimizing defects and enhancing product quality.
  • ESD Compliance: The DLV5840U is ESD compliant, making it suitable for use in sensitive electronic assembly environments. Its anti-static properties prevent electrostatic discharge, safeguarding delicate components from damage.
  • Lever Start Mechanism: The screwdriver incorporates a convenient lever start mechanism, enabling effortless operation with minimal fatigue. The lever start allows for quick and precise starts, reducing cycle times and boosting productivity.
Back

Technical Specifications

Min Torque - In lbs
1.3
Max Torque - In Lbs
3.5
Min Torque - Nm
0.15
Max Torque - Nm
0.4
Free speed - rpm
600
Drive Size
4mm
Type
Electric Screwdriver
Style
Inline
Start Type
Lever
ESD Compliant
1.3
Controller
DLC0350LU
Voltage
40V
Weight - lbs
0.51
Stock Code
B
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Videos & Media

Back

Frequently Asked Questions

What is the torque range of the DLV5840U?

The DLV5840U has a torque range from 1.3 to 3.5 in lbs (0.15 - 0.4 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the DLV5840U, are most commonly used for medium to heavy assembly applications where precise torque control is required. The DLV5840U is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
