Overview

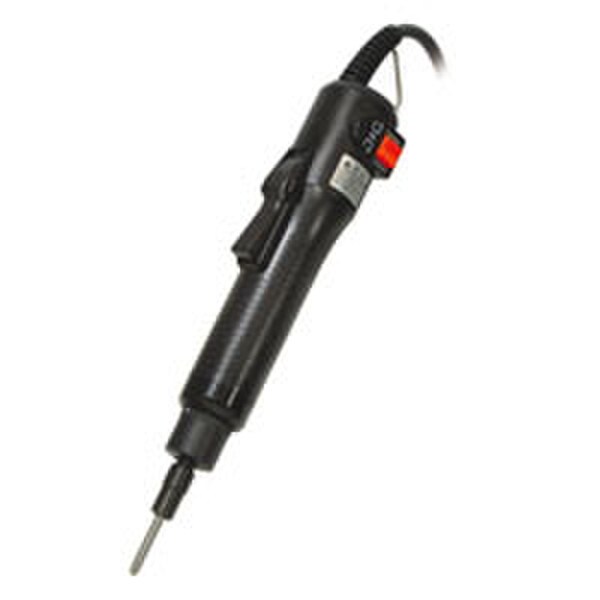

Introducing the Nitto Kohki-Delvo DLV7331-BKU Electric Screwdriver, a top-of-the-line assembly tool that combines precision, reliability, and durability. Designed for miniature screws, this electric screwdriver is ideal for intricate fastening tasks in various industries.

  • Min Torque(In Lb: 2.7)
  • Max Torque(In Lb: 10.6)
  • Drive Size: 1/4'' Hex
  • Free Speed(RPM): 500 - 700
  • Voltage: 36V
  • Start Type: Auto Shut Off
Back

Features & Benefits

  • Unrivaled Accuracy: Equipped with a high-quality brushless motor, the DLV7331-BKU delivers precise torque control and repeatable accuracy, ensuring consistent and reliable fastening results.
  • Long-Life: Built to withstand the rigors of industrial use, this electric screwdriver boasts a durable construction that guarantees long-term reliability and performance.
  • 1/4'' Hex: The 1/4'' hex chuck provides versatility and compatibility with a wide range of screwdriver bits.
  • Reduced Recoil: The innovative design of the DLV7331-BKU minimizes recoil, enhancing user comfort and reducing fatigue during extended use.
Back

Technical Specifications

Min Torque - In Lbs
2.7
Max Torque - In Lbs
10.6
Min Torque - Nm
0.31
Max Torque - Nm
1.2
Start Type
Lever Start
Clutch Type
Auto Shut Off
Style
Inline
Drive Size
1/4'' hex
Free Speed - rpm
700
Voltage
36V
ESD Compliant
yes
Power supply
DLC1213-LUB
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the DLV7331-BKU?

The DLV7331-BKU has a torque range from 2.7 to 10.6 in lbs (0.31 - 1.2 Nm).

Did you know that the average max torque range of an Electric Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Screwdrivers like the DLV7331-BKU, are most commonly used for medium to heavy assembly applications where precise torque control is required. The DLV7331-BKU is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
