Overview

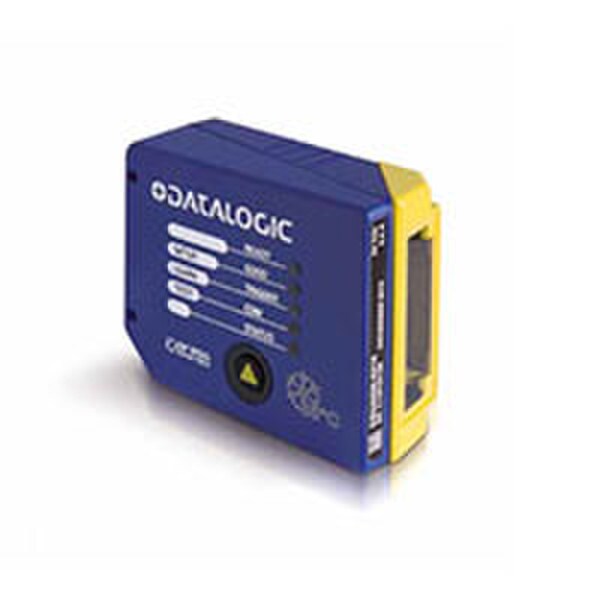

Datalogic DS2400N-2215 / 930181420

LONG RANGE, RASTER, NSC, SUBZERO

The new DS2400N is the first-in-his-class laser bar code reader offering maximum connectivity freedom, better optic performance and ease to install in the most demanding applications including warehousing, shop floor and OEM machinery. DS2400N is optimum choice on short-medium reading distance and it is equipped with all connectivity options including PROFINET,EtherNet/IP, and Ethernet TCP/IP communication protocols.

Features:
  • Embedded Ethernet connectivity
  • Two PROFINET Ports
  • Embedded Ethernet Switch
  • Rotating connector block
  • Compact dimensions
  • Installation flexibility and optimum form factor
  • Advanced Code Reconstruction (ACR)
  • Excellent performance on low quality and damaged labels
  • Up to 600mm (23.6 in) reading distance
Applications:
  • Automatic warehousing
  • Small conveyors
  • Picking systems
  • Packaging machines
  • Document handling machines
  • Print & Apply systems
  • Quality control and parts tracking
Back

Features & Benefits

  • Embedded Ethernet connectivity
Back

Technical Specifications

Operating Modes
On-line, Serial On-line, Automatic, Continuous, Test, Verifier
Model
DS2400N-2215
Type
Identification - Laser Bar Code Scanner
Manufacturer
Datalogic
Operating Temperature Range
-35°C to 45°C (-31°F to 113°F)
Permissible relative humidity (%)
90
Power consumption (W)
9.6
SKU
930181420
Dimensions
84 x 68 x 34 mm
Communication
RS232, RS485
Power supply
24 VDC
Output
OUT1, OUT2 SW programmable event driven,optocoupled, NPN-PNP
Weight (lbs)
0.75
Series
DS2400N
Max scans/sec
600 - 1000
Resolution
0.20 mm, 8 mils
