DTT Torque Tester
Overview

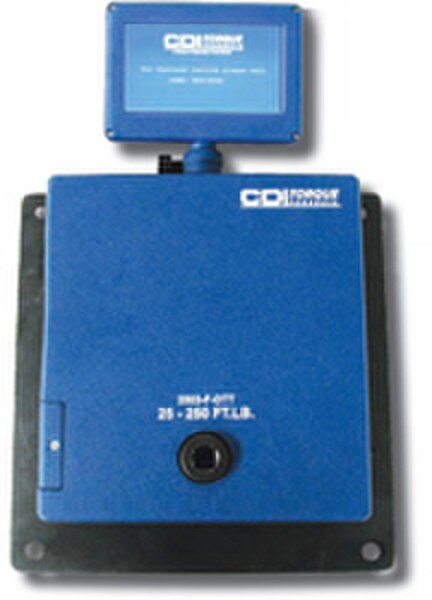

The CDI Digital Torque TesterTM (DTT)is designed to be an affordable torque tester that can be mounted on a wall or used in a bench-top vise to allow the operator to conveniently test torque wrenches and torque screwdrivers. It features an easy to use touch pad screen to capture peak torque values during a test in real time, and download stored torque data to a PC. All DTT torque testers are sold in a kit with the complete tester, hard carrying case, two socket driver reducer adapters and AC/DC power supply.
CDI Torque Products is America's largest manufacturer of electronic and mechanical Torque Tools. A leading industry innovator for over 30 years, CDI provides the highest in quality torque measurement and torque limiting devices.
Units of Measure: Nm, kgcm, ft.lb., in.lb., in.oz.
Operation Modes: TRACK, PEAK, FIRST PEAK
Operating Temperature: 10 to 32º C (50 to 90º F)
Storage Temperature: -20 to 50º C (-2 to 122º F)
Humidity: 85% Relative Humidity @ 21º C (70º F)
Power Supply: Included 9-volt A/C D/C adapter. 6 AA batteries included.
Data Storage/Recall: Memory Capacity – 500 Records (Complete Check Mode Only.)
Dimensions: W - 10" x H - 16" x D - 2.5"
Weight: (Tester Only) - 10.7 lbs., (with Carrying Case) - 17.4 lbs.
CDI Torque Products is America's largest manufacturer of electronic and mechanical Torque Tools. A leading industry innovator for over 30 years, CDI provides the highest in quality torque measurement and torque limiting devices.
- Integral Transducer and sturdy housing allow mounting in virtually any position
- Integral Transducer: Full bridge strain gage, 350 ohm, 1500uE, 3mV/V F.S, 3.75 excitation
- Units of Torque: Nm, kgcm, ft.lb., in.lb., kgm
- Audible (tone)
- Torque Accuracy: ±0.5% CW and CCW from 5.6 to 100% of full scale at 25° C
- LCD Touch Screen: 4.7 in. color graphics display
- Screen resolution: 480 X 272 pixels
- 110 Volt AC/DC power supply included
- Display Accuracy: 4 digits, 9999 cycle counts
- Six "AA" Alkaline cells for battery power included
- Track, Peak and First Peak modes of operation
- Operating Temperature: 40 to 110° F (5 to 42° C)
- Storage Temperature: 0 to 122° F (-20 to 50° C)
- Humidity up to 85% non-condensing
- ISO-6789-2003 and ASME B107-28-2005 standards compliant
- Certificate of N.I.S.T. traceability from 5.6 to 100% of full scale
- Includes storage case, AC adapter and USB cable
Units of Measure: Nm, kgcm, ft.lb., in.lb., in.oz.
Operation Modes: TRACK, PEAK, FIRST PEAK
Operating Temperature: 10 to 32º C (50 to 90º F)
Storage Temperature: -20 to 50º C (-2 to 122º F)
Humidity: 85% Relative Humidity @ 21º C (70º F)
Power Supply: Included 9-volt A/C D/C adapter. 6 AA batteries included.
Data Storage/Recall: Memory Capacity – 500 Records (Complete Check Mode Only.)
Dimensions: W - 10" x H - 16" x D - 2.5"
Weight: (Tester Only) - 10.7 lbs., (with Carrying Case) - 17.4 lbs.
Technical Documents
User Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
