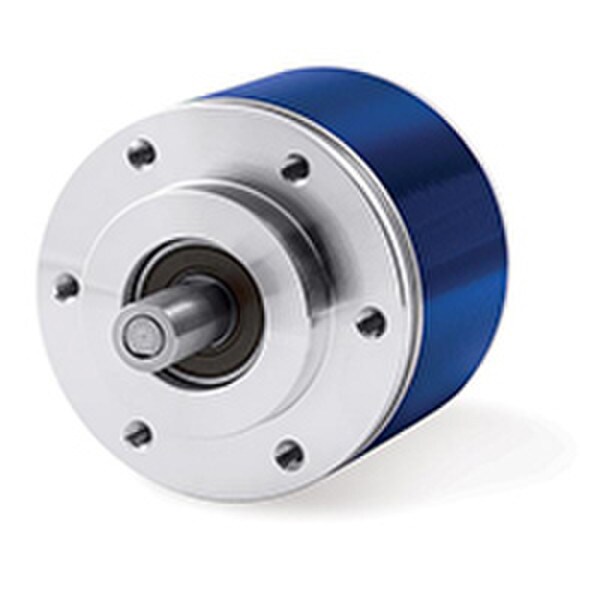

Datalogic AST58 Series Absolute Rotary Encoders

AST58 is the absolute encoder single-turn standard industrial line, recommended for its price/performance ratio, high resolution and accuracy for advanced applications. The typical applications for this encoder can be found in motion control, automated machinery, conveyor lines.

• Aluminium anticorodal metal case Ø58 mm
• Solid shaft Ø6 or 10 mm, hollow shaft Ø15 mm
• Reducing sleeves to 6, 8, 9.52, 10, 11, 12 mm
• Single-turn resolution 13 bit (up to 8192 cpr)
• M12, M23, or 1.5m cable connection
• Gray SSI® tree output signal
• Power supply 7.5 – 34 Vdc

• Motion control
• Conveyor lines
• Automated machinery
