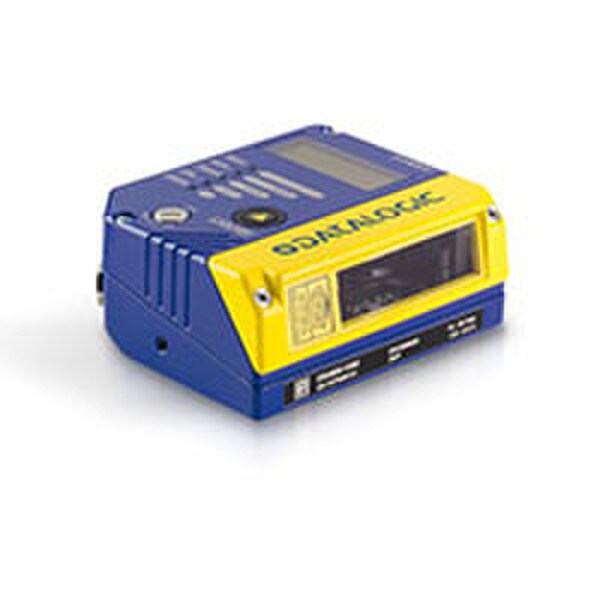

Datalogic DS4800 Series Barcode Scanners
Overview
DS4800 is a flexible and compact laser scanner for industrial application, satisfying all main identification needs of your manufacturing plants. DS4800 features an excellent reading performance, ease of setup thanks to X-PRESS™interface, high-speed ID-NET™ communication interface and total immunity against ambient light.
Smart Focus Adjustment optimizes reading performances based on reading distances using a single model.
DS4800 series includes Subzero models (both Linear and Oscillating Mirror), extending operating temperature to -35°C +50°C by means of the smart internal heater and de-frost window.
Features:- Variable focus system
- 600-900scan /sec
- 2 input + 2 output
- RS232 + RS485 serial port
- Display and multi-language messages
- ID-NET™
- X-PRESS™
- 10-30Vdc, IP65, 0-50°C (-35°C-50°C Subzero models)
- ACR4 decoding algorithm
- Typical reading range: 200 - 1000mm
- Automated warehousing
- Reading on pallets
- Picking systems
- Automated shop floor
- Quality control and parts tracking
- Reading on forklift trucks
- Frozen Industry, Temperature Controlled Room applications and Outdoor Environment
Features & Benefits
- 600 - 900 scans per second
- Display and multi-language messages
- From $1,788
- 200 - 1000 mm reading range
Technical Documents
Datalogic DS4800 Laser Barcode Scanners Brochure (PDF)- Datalogic DS4800 Laser Barcode Scanners Manual (PDF)
- Datalogic Identification Product Guide (PDF)
- Datalogic Identification Reference Guide (PDF)
