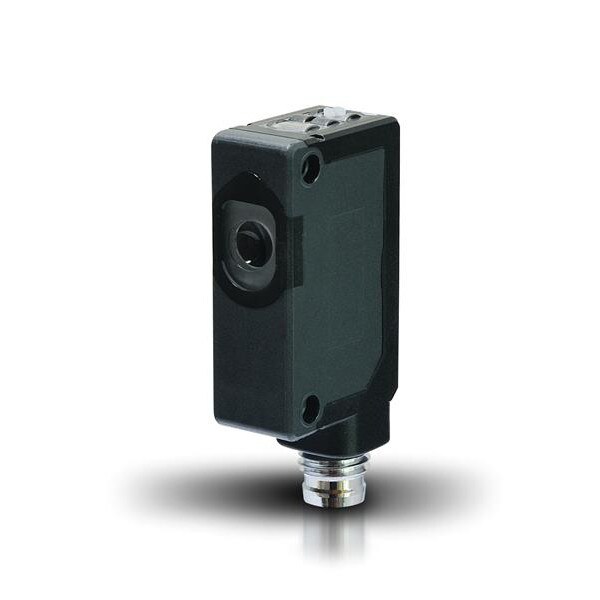

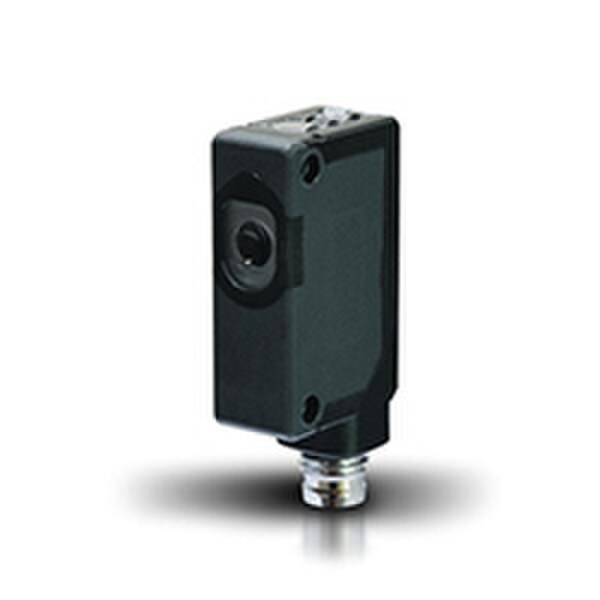

Datalogic S3Z Series Mini Sensors

The high operating distances and cost-effective price, makes the S3Z series in the miniature format with dimensions and standard mounting affirmed in the market, in particular in Far-East.

Different models are available: 20 m through beam, 4 m polarized retro-reflective, 2 m polarized for transparent, 700 mm diffuse proximity, narrow beam from 50 to 150 mm and 50 to 300 mm background suppression model with multi-turn mechanical trimmer setting.

Also available LASER models class I: 30 m through beam, 10 m polarized retro-reflective and 40 to 300mm background suppression.

Versions with NPN or PNP output, with dark or light operating mode and with cable or M8 connection are available. The plastic housing is completely overprinted, guaranteeing maximum mechanical protection also in presence of frequent washing.

• Complete range of optic function LED or LASER emission
• 2 m polarized for transparent detection
• 40-300 mm background suppression with both LASER or LED technology emission
• 700 mm long diffused, 150 mm diffused narrow beam
• 4 m polarized retro-reflective or 10 m LASER model
• 15 m through beam or 30 m LASER model
• Standard 3 wire output configuration
• IP67 mechanical protection
• Interference prevention allows two units to be mounted side by side

• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
