ESL211-ESD | Inline Brushless Electric Screwdriver, 0.44 - 3.08 in lbs, 4mm round, 1000 rpm, ESD, Lever

(0)No Reviews yet
$610.80
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

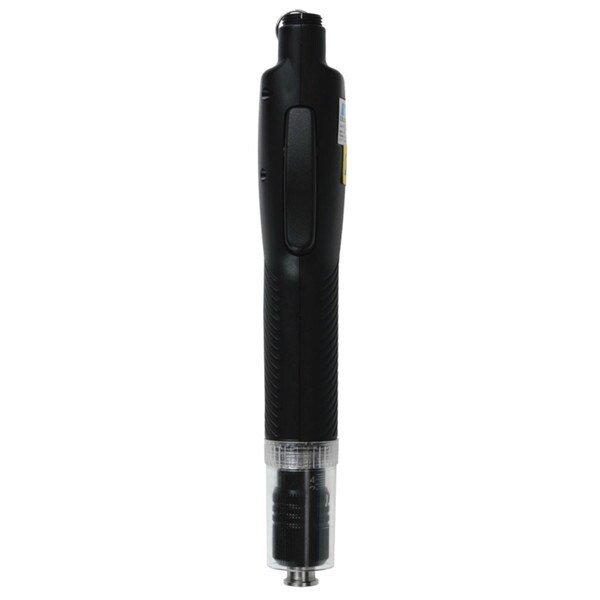

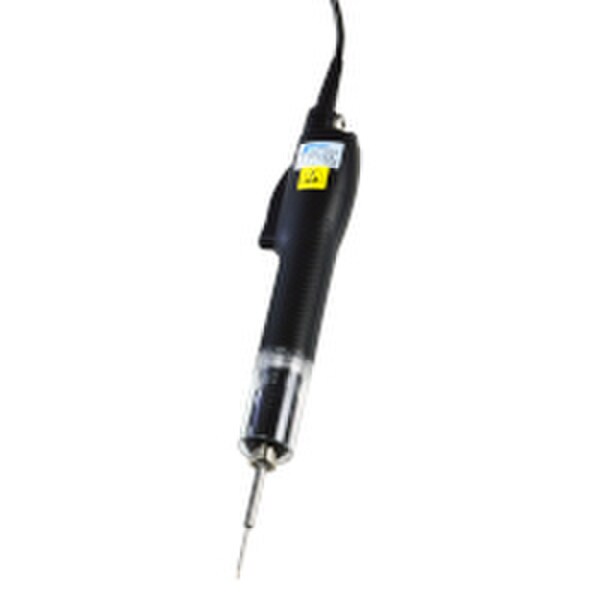

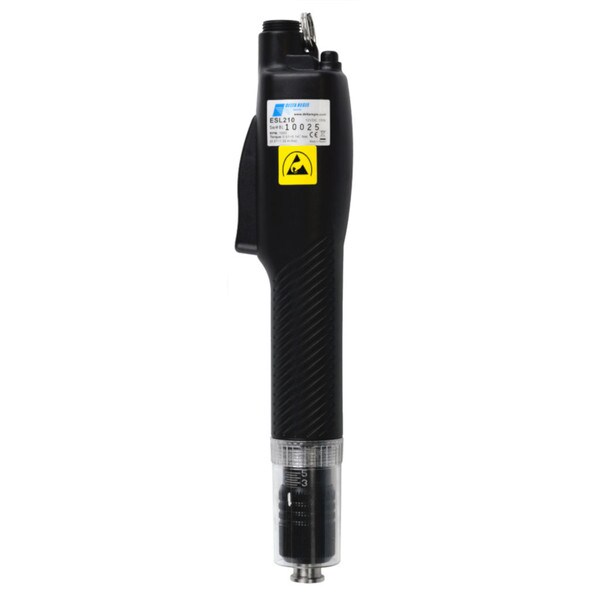

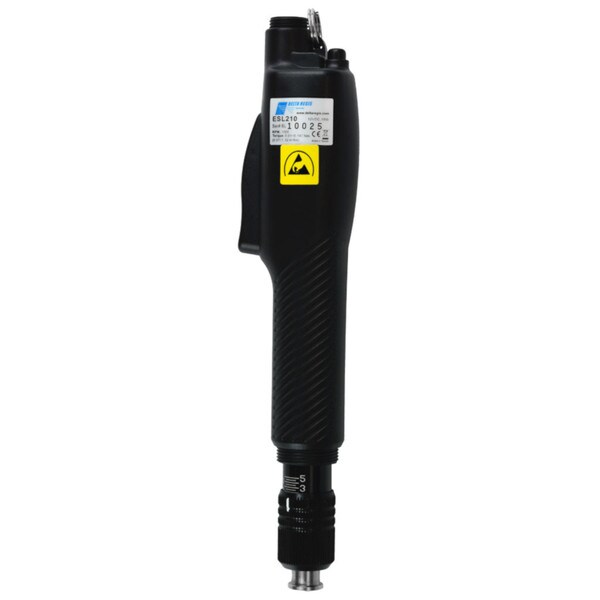

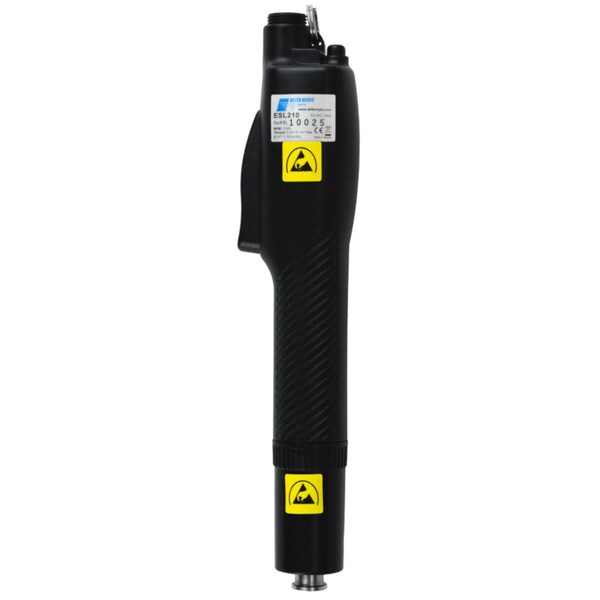

Introducing the Delta Regis ESL211-ESD Inline Brushless Electric Screwdriver, a compact and lightweight tool designed to revolutionize your precision fastening applications. Manufactured by Delta Regis, this electric screwdriver combines power, control, and versatility to streamline your assembly operations.

  • Min Torque(In Lb: 0.44
  • Max Torque(In Lb: 3.08
  • Drive Size: 4 mm round
  • Free Speed(RPM): 1000 / 700
  • Voltage: 12V
  • Start Type: Lever Start

Requires external power controller BECT200 sold separately.

Back

Features & Benefits

  • Inline Design: The inline configuration of the ESL211-ESD allows for easy access in tight spaces, making it ideal for intricate assembly tasks.
  • Precise Shut-Off Clutch: Experience precise and excellent low torque repeatability with the ESL211-ESD's shut-off clutch, ensuring accurate fastening results.
  • Lever Start and Top-Mounted Reverse Button: The lever start and top-mounted reverse button provide convenient control, enhancing user comfort and efficiency during assembly tasks.
  • ESD Safe Housing: The ESD-safe housing of this electric screwdriver protects against electrostatic discharge, making it suitable for sensitive electronic assembly environments.
Back

Technical Specifications

Model
ESL211-ESD
Drive size
4 mm
Manufacturer
Delta Regis
Controller
BECT200
Free Speed (RPM)
1000 / 700
SKU
ESL211-ESD
Stock Code
2
Power Source
BECT200
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
0.044
Max Torque (In Lb)
3.08
Min Torque (Nm)
0.05
Max Torque (Nm)
0.34
Overall Length
165
ESD Compliant
Yes
Length
6.5
Power supply
BECT200
Max Free Speed (rpm)
1000
Weight (lbs)
0.4
Series
ESL2
Drive Type
4 mm
Voltage
12V
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the ESL211-ESD?

The ESL211-ESD has a torque range from 0.044 to 3.08 in lbs (0.05 - 0.34 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the ESL211-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ESL211-ESD is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
