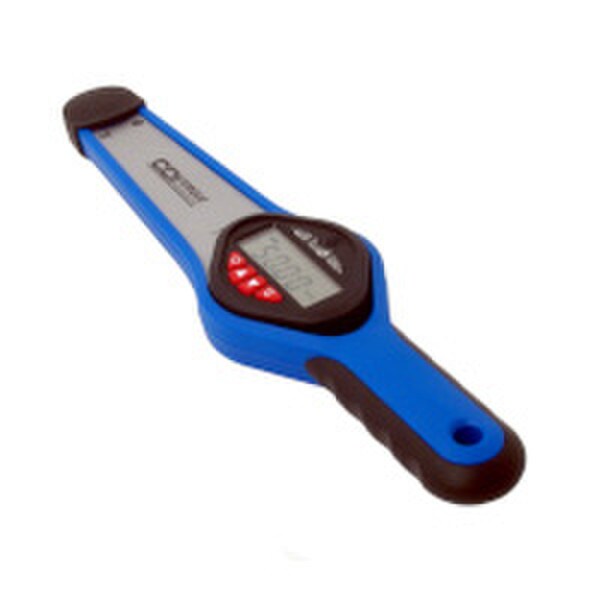

CDI ED Series Digital Torque Wrench
Overview
The new Electronic Dial (ED) torque wrench features solid state electronics for accurate torque application and measurement. ED’s best digital torque wrench is designed to provide easy set-up and usage. There is no need to look directly at the digital readout as the wrench features 3 indicating lights and an audible buzzer. ED torque wrenches: unsurpassed reliability and durability -- 21st century technology in a simple, easy to read digital torque wrench.- 4 units of measure...ft lb, in lb, Nm, kg.cm
- Accuracy: ± 1% of indicated value CW & CCW, from 20% to 100% of full scale
- 3 step LED visual signal system
- YELLOW LIGHT = approaching target torque
- GREEN LIGHT = target torque reached
- RED LIGHT = over torque indicator
- Audible tone when desired torque is reached
- Alarm tone sounds if wrench is overtorqued
- Ergonomically designed wrench body
- Display can be turned 180 degrees to allow left hand usage
- Battery cover designed to be aviation FOD proof
- Holds “peak” torque reading for 10 seconds
- Constructed of special Capron® material for long life and durability
- Resistant to the majority of chemicals used in industrial environments.
- Wrench can be hung on tool board
- Bar graph displays orientation of torque application (left or right hand)
- Uses standard 9 volt alkaline battery
- N.I.S.T. traceable certifi cate of calibration included
- Meets or exceeds ASME B107.28 – 2005
