EDU1CL/FR | Single ouput; blank controller

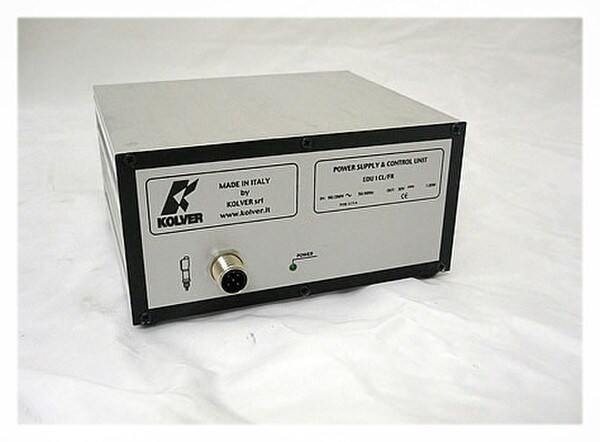

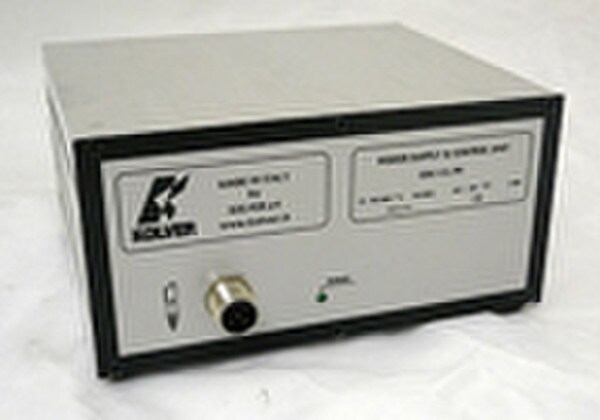

Kolver EDU1CL/FR

Single Ouput; Blank Controller

The EDU1CL/FR is our lowest cost controller. This unit has the RPM controls removed from the cover plate of the standard EDU1FR and the control box is supplied without paint.

The control units feature maintenance free state-of-the-art electronics with no wearing components and a circuit design suitable for lever start and push-to-start drivers as well as protection against current overload up to 10A. This design results in very low current to the drivers start switch and clutch switch to extend the life of the screwdriver indefinitely.
Features review

Suitable to universal supply from 90 to 260 V ac 50/60 hz
Visual indicators (green-red) for power on/off and clutch action
Reduced weight (1.33 lbs) and compact size for easy placement
M12 waterproof connector with silver and gold contacts for perfect conductivity

Options:

A double output connector (DOCK01) is also available for operators using two screwdrivers on the same working area. One Screwdriver is powered at a time making this option perfect when two torque setting are required on the same job.
