EDU2BR | Brushless Controller for high torque brushless models

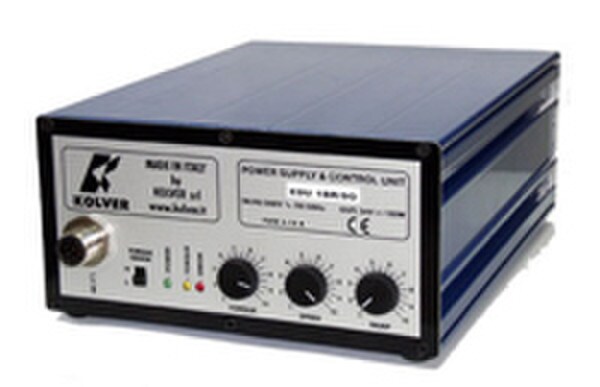

Kolver EDU2BR

Brushless Controller For High Torque Brushless Models

The EDU2BR is a control unit for the low torque brushless screwdrivers. These control units feature maintenance free state-of-the-art electronics with no wearing components and a circuit design suitable for drivers with brushless motors as well as protection against current overload up to 10A. This design results in very low current to the drivers start switch and clutch switch to extend the life of the screwdriver indefinitely.
Features review

Suitable to universal supply from 90 to 260 V ac 50/60 hz
Adjustable torque knob
High/Low torque selection switch:
H = 20% to 100 of torque
L = 0 to 30 % of the nominal torque range
Speed control knob: 60% to 100% of drivers rated RPM
Ramp adjustment knob: 0-2 seconds
Visual indicators:
green = power on/off
yellow = torque OK
red = torque error
Reduced weight (1.33 lbs) and compact size for easy placement
M12 waterproof connector with silver and gold contacts for perfect conductivity
