Overview

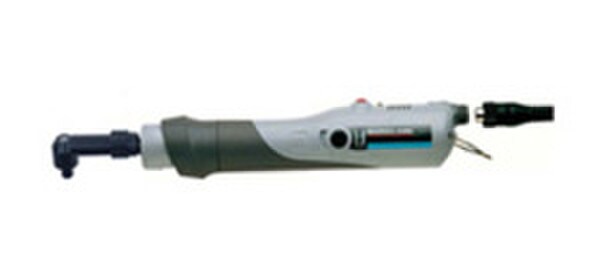

Introducing the Ingersoll Rand EL2612N2S3 Electric Screwdriver, a robust and versatile assembly tool designed to streamline your fastening operations. Engineered with precision and power, this electric screwdriver combines exceptional performance with user-friendly features to elevate your productivity and efficiency.

  • Min Torque(In Lb): 17
  • Max Torque(In Lb): 40
  • Drive Size: 1/4'' hex
  • Head Type: Angle Head
  • Special Features: Auto Shut-Off
  • Manufacturer: Ingersoll Rand
Back

Features & Benefits

  • Impressive Torque Range: With a remarkable torque range of 17-40 In Lb, the EL2612N2S3 effortlessly handles various fastening applications, ensuring accurate and consistent results.
  • Auto Shut-Off Mechanism: Equipped with an innovative auto shut-off feature, this electric screwdriver prevents overtightening, safeguarding your materials from damage and ensuring optimal fastening outcomes.
  • Angle Head Design: The angle head configuration allows for easy access and precise fastening in tight spaces or hard-to-reach areas.
  • 1/4'' Hex Drive Size: The EL2612N2S3 features a 1/4'' hex drive size, providing versatility and compatibility with a wide range of screwdriver bits.
Back

Technical Specifications

Model
EL2612N2S3
Stat 1
Lever Start
Stat 2
17.0 - 40.0 In Lb
Drive size
1/4'' hex
Manufacturer
Ingersoll Rand
Length (In)
17.64
SKU
EL2612N2S3
Stock Code
3
Power Source
115VAC
Style
Angle Head
Clutch Type
Auto Shut Off
Min Torque (In Lb)
17
Max Torque (In Lb)
40
Min Torque (Nm)
1.9
Max Torque (Nm)
4.5
UPC
00663023007298
Max Free Speed (rpm)
800
Weight (lbs)
2.2
Drive Type
1/4 in. hex
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the EL2612N2S3?

The EL2612N2S3 has a torque range from 17 to 40 in lbs (1.9 - 4.5 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the EL2612N2S3, are most commonly used for medium to heavy assembly applications where precise torque control is required. The EL2612N2S3 is an Angle Head model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
