ES30 | Test stand, hand wheel-operated, 200 lbF / 1 kN
Overview

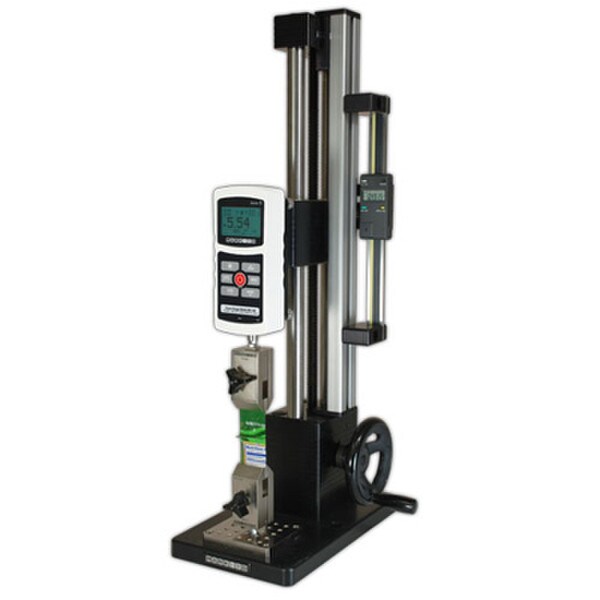

Mark-10 ES30
Test Stand, Hand Wheel Operated, 200 Lb
The ES30 Force Measurement Test Stand is a versatile and economical solution for most compression and tensile testing applications. It can accept a wide variety of sample shapes and sizes and can be configured in many positions due to modular design. Precision hand wheel operation enables the user to easily and accurately test up to 200 lb of force. Use the ES30 with any Mark-10 force gauge and grips to create a complete testing solution.
The ES30 test stands include the following accessories:
(1) G1024 extension rod, 2”
(1) G1028 small hook
(1) G1038 medium hook
(1) G1009 compression plate, 2” dia.
(1) G1039 coupling, #10-32F/F
(1) G1030 thread adapter, 5/16-18M to #10-32F
(1) Allen wrench set
(1) Hand wheel
(4) Thumb screw for force gauge
(1) Resource CD
Features & Benefits
- hand wheel operated
- Compatible with all Mark-10 force gauges, accessories and grips
- Removable base plate with 25 #10-32 threaded holes for fixture mounting
- Mounting holes for bench mounting Modular design
Technical Specifications
Technical Documents
Data Sheet (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
