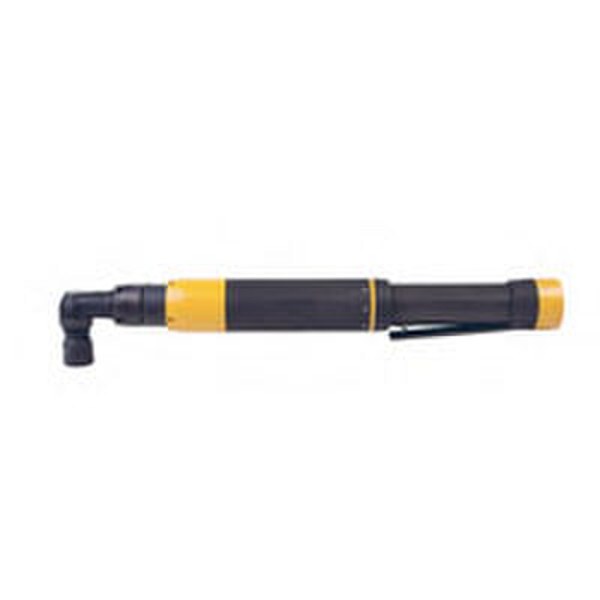

8436 0160 40 | ETV ES61-40-10 | Angle Electric Nutrunner, 16 - 40 Nm, 1153 rpm
Overview
The Tensor ES tool is designed for tough working environments. Its industrial design and brand new torque transducer together makes the decision to go electric easy. Durable performance in quality critical assembly now faster than ever thanks to the new and revolutionary tightening strategy TurboTight.
Features:- Torque transducer with an accuracy of ±7.5% over six sigma.
- Robust, sealed design with one single extruded aluminum body protecting internal components from dust and oil.
- New durable motor with higher speeds.
- Engineered in modules with component commonality.
- Clear LEDs visible through 360°.
- Hot swap.
Features & Benefits
- Durable motor with high speeds
- Robust, sealed design protecting internal components from dust and oil.
- Engineered in modules with component commonality
Technical Specifications
Model
ETV ES61-40-10
Recommended Torque Range (Ft Lb)
11.8-29.5
Drive size
3/8" square
Manufacturer
Atlas Copco
Length (mm)
441
Min Torque (Ft Lb)
11.8
Free Speed (RPM)
1153
SKU
8436 0160 40
Stock Code
3
Style
Angle Head
Max Torque (In Lb)
354
Max Torque (Ft Lb)
29.5
Min Torque (Nm)
16
Max Torque (Nm)
40
Square Drive
3/8
Max Free Speed (rpm)
1153
Weight (lbs)
4.2
Drive Type
3/8" square
Weight (kg)
1.9
Technical Documents
Atlas Copco ES Series Micro Torque Tools Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
