M-1iA/0.5A | 6 Axis, 0.5 kg Compact Mini Robot, 280 mm reach
Overview

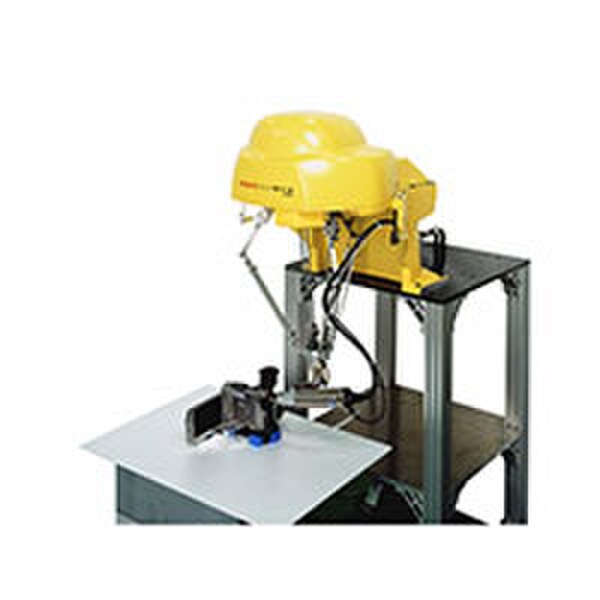

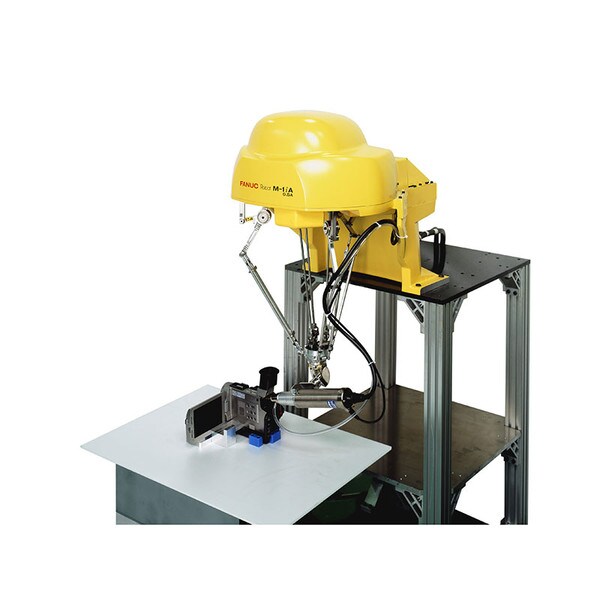

FANUC M-1iA/0.5A
6 Axis, 0.5 kg Compact Mini Robot, 280 mm reach
Genkotsu (Delta) - Compact High-Speed Assembly RobotThe M-1iA is a lightweight and compact high-speed assembly Robot. This lightweight and compact mechanical unit can be installed into tight work spaces, with free angle installation options.
Features:- Six Axis Variant
Three Axes in wrist, providing flexible wrist motion suitable for assembly.
- Four Axis Variant
Single axis wrist (robot total is four axes) type. High speed 3000°/s wrist is suitable for picking.
- Three Axis Variant
Three Axis with a 1kg payload and no wrist rotation. Ultra high speed motion for line transfer or pick and place operations.
- Unique parallel-link mechanism enables quick motion.
- Multiple installation methods include desktop stand, no stand, and ceiling mount for easy machine integration.
- A camera for iRVision (Integrated Vision) can be integrated in the mechanical unit.
Features & Benefits
- Capable of working at any angle, this is the perfect choice for assembly and pick & place applications
- 6 axes in combination with FANUC's patented 3 axis wrist makes this model ideal for picking or complex component assembly applications at any angle.
- Vibration: 0.5G or less
Technical Documents
FANUC M 1iA Series Compact High Speed Assembly Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
