M-410iB/140H | 5 Axis, 140 kg Palletizing Robot, 2850 mm reach
Overview

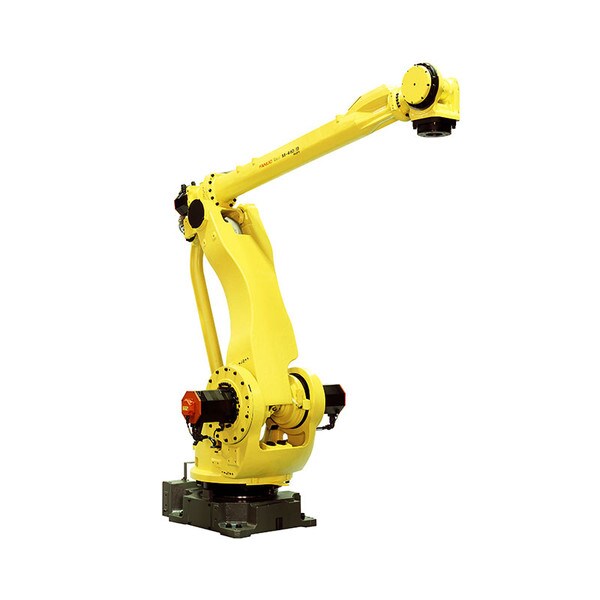

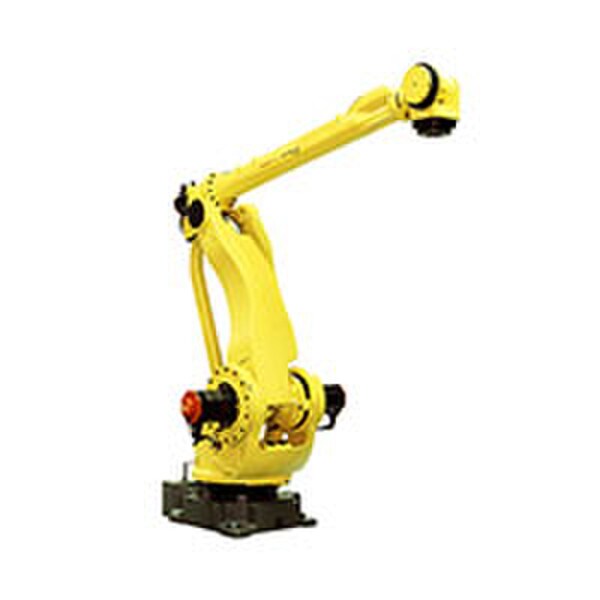

FANUC M-410iB/140H
5 Axis, 140 kg Palletizing Robot, 2850 mm reach
The FANUC M-410iB Series Robot is the ideal intelligent solution for automation of palletizing systems. The wide range of M-410iB robot variations make it suitable for any application and payload.
FANUC Robot M-410iB/140H : 140 kg payload, high speed type
FANUC Robot M-410iB/160 : 160 kg payload, high speed type
FANUC Robot M-410iB/300 : 300 kg payload, heavy payload type
FANUC Robot M-410iB/450 : 450 kg payload, heavy payload type
FANUC Robot M-410iB/700 : 700 kg payload, super heavy payload type
The M-410iB robot series comes iRVision ready and can be programmed and simulated through ROBOGUIDE.
- Detection of height workpieces
- Discrimination of a part size or type
- Visual inspection
- Sorting of workpieces
- Depalletizing the load on a recieved pallet
- Easy to create a palletizing program
- Motion optimization of a program
Features & Benefits
- Increase productivity by up to 1, 900 palletizing cycles per hour.
- Top mounting maximizes the work envelope while minimizing both ceiling height and floor space requirements.
- Visual line tracking with FANUC's unique plug and play iRVision for easy locating and reliable picking of boxes
Technical Documents
FANUC M 410iB Series Intelligent Palletizing Robot Brochure (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
