1450931 | Hydro-Pneumatic Riveting Tool, speed rivet, 11000 N traction

Gesipa Hydro-Pneumatic Riveting Tool, speed rivet, 11000 N traction

1450931

Hydro-Pneumatic Riveting Tool, speed rivet, 11000 N traction, 1450931 by Gesipa, available on Flexible Assembly Systems. Do you see this Hydro-Pneumatic Riveting Tool for a much lower rate? Contact Customer Service for price matching!

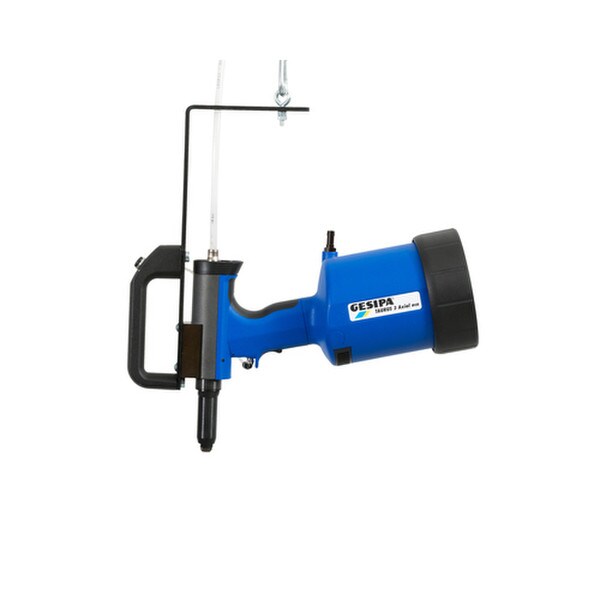

The special gun of the TAURUS® 2 Axial eco can be integrated in assembly benches, installations or partially automated workstations and facilitates flexible and ergonomically efficient manual working procedures in applications with restricted access that therefore require riveting from above. In order to make sure that the parts to be riveted make contact without any gaps and that the setting head is in contact with the material, the TAURUS® 2 Axial eco can also be supplied with a spring-loaded trigger system. A compressed air supply is additionally required for reliable mandrel evacuation. Depending on the application, this is preferably achieved via the balancer with valve or the time delay valve. The TAURUS® 1–4 Axial eco series is an inexpensive entry-level model for special applications.

Rivets: Blind rivets up to 5 mm Ø all materials and up to 6 mm Ø alu/steel (max. mandrel dia. 3.2 mm)
