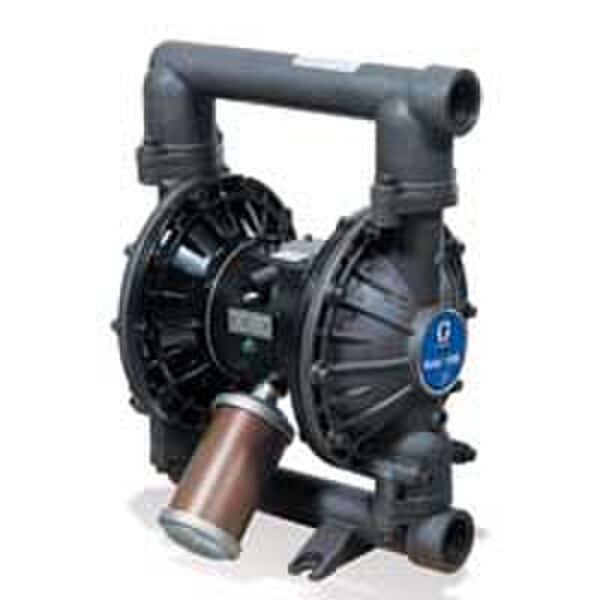

Graco Husky 1590 Diaphragm Pumps

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Features:

1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation

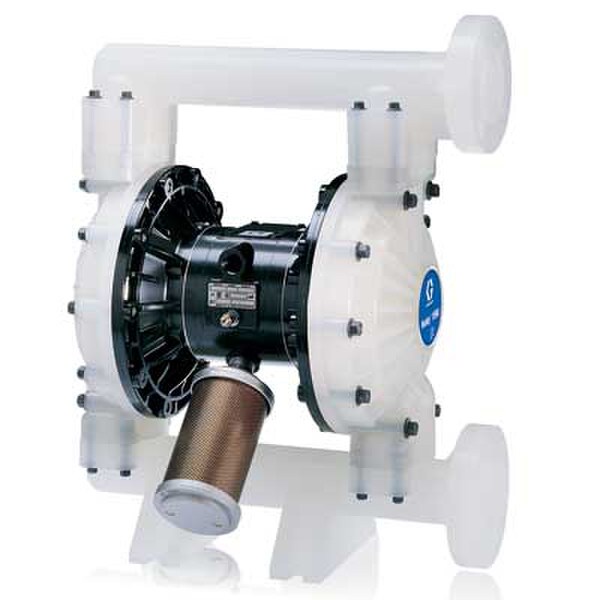

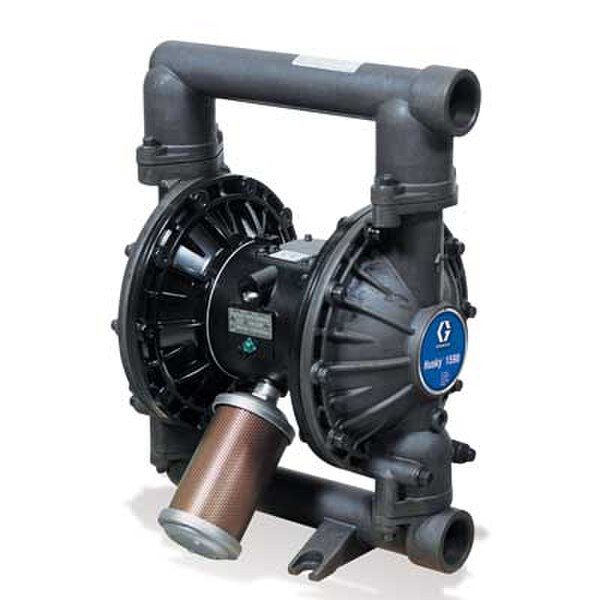

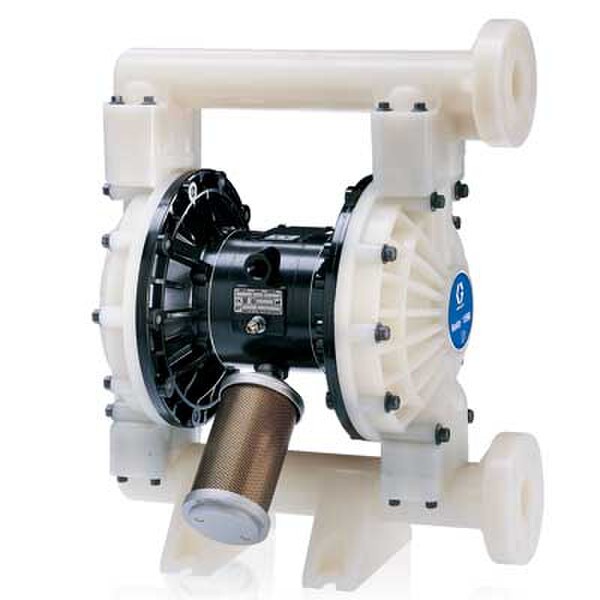

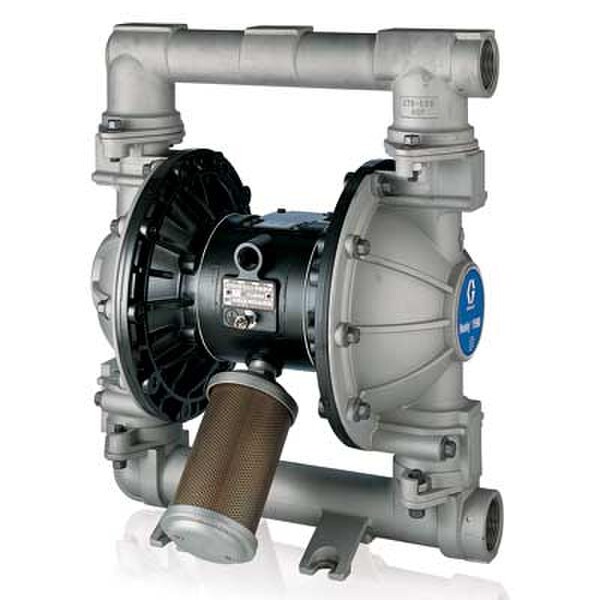

Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Specs:

  • Connection Size: 1/2 in
  • Thread Type: NPT or BSP
  • Air Valve: Standard and Remote
  • Maximum Flow Rate: 100 gpm (378.5 lpm)
  • Maximum Discharge Pressure: 120 psi
  • Materials of Construction Available: Aluminum, Stainless Steel, Polypropylene, PVDF
  • Pump Weight: 33.5 lb Aluminum 86 lb Stainless Steel Polypropylene 35 lb PVDF 49 lb
  • Maximum Solids: 0.19 in
  • Port Size: NA
  • Fluid Inlet & Outlet Size: 1-1/2 NPT or BSP or ANSI-Flange





Back

Features & Benefits

  • 1.5 inch Positive Displacement Double Diaphragm Pump
  • Easy-to-service air valve and ball checks
Back

Technical Specifications

Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Ratings & Reviews

No reviews available

Be the first to Write a Review

Models Available
