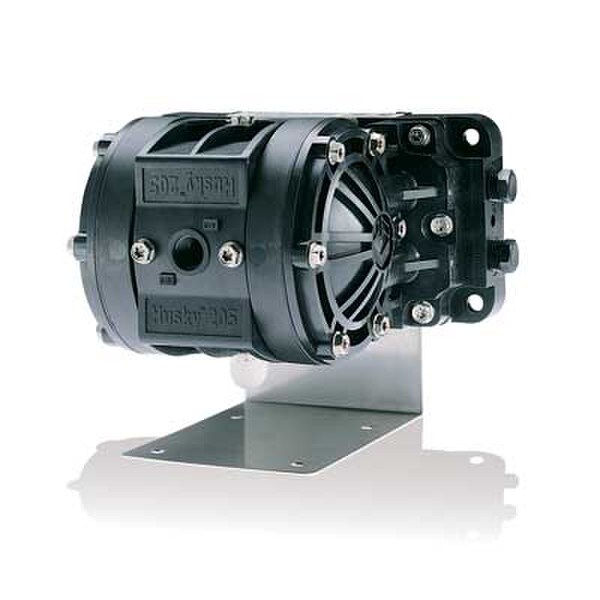

Graco Husky 205 Plastic Diaphragm Pumps

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Features:

1/4-in (6.35 mm) end-porting double diaphragm pump

Spring check valves for superior priming in any mounting configuration

Remote control option using an external controller

Specs:

  • Connection Size: 1/4 in (6.3 mm)
  • Thread Type: NPT or BSP
  • Air Valve: Standard and Remote
  • Maximum Flow Rate: 5 gpm (19 lpm)
  • Maximum Discharge Pressure: 100 psi
  • Materials of Construction Available: Polypropylene, PVDF, Acetal
  • Center Section: Polypropylene
  • Pump Weight: 2.0 lb Polypropylene 2.5 lb Acetal 2.8 lb PVDF
  • Maximum Solids: 0.06 in
  • Port Size: 1/4 NPT
  • Fluid Inlet & Outlet Size: 1/4 NPT


Back

Features & Benefits

  • Spring check valves for superior priming
  • Remote control option using an external controller
