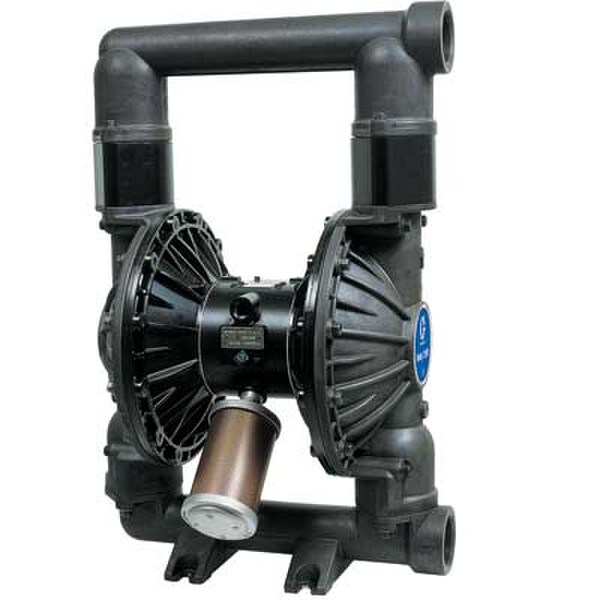

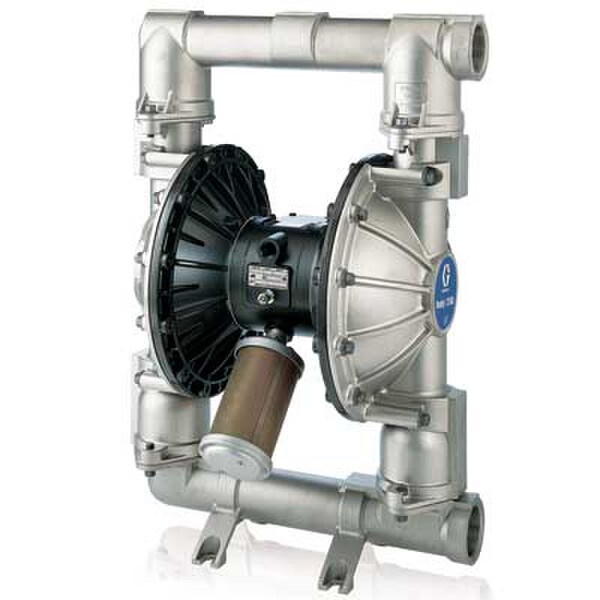

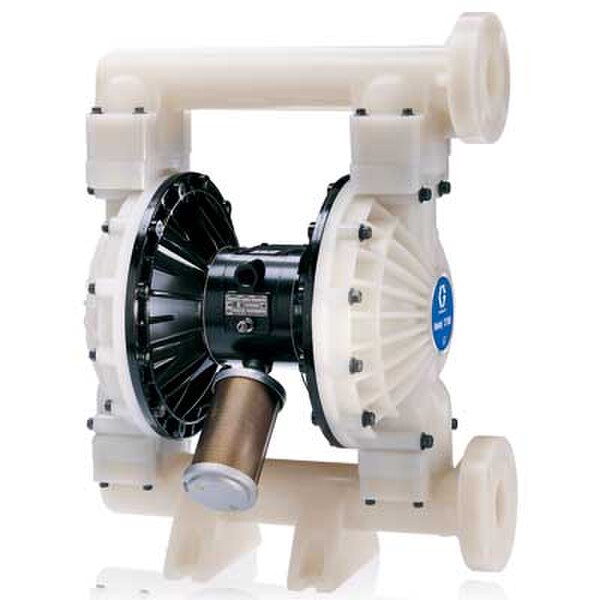

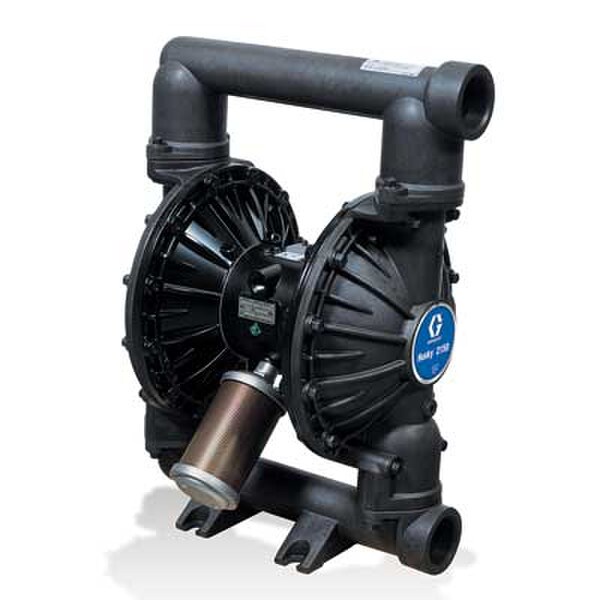

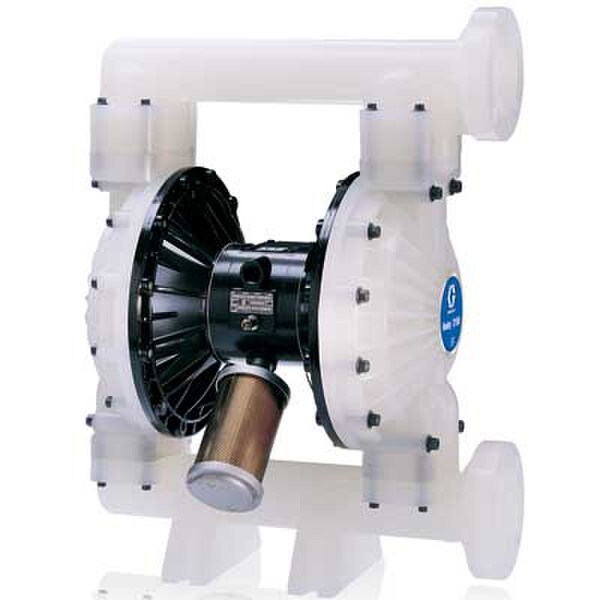

Graco Husky 2150 Diaphragm Pumps

(0)No Reviews yet

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Features:

2 in (51 mm) ANSI end-porting
Fluid flow up to 150 gpm (568 lpm)
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Epoxy-coated air section for tough environmental conditions
Available in aluminum, 316 stainless steel, ductile iron and polypropylene

Specs:

  • Connection Size: 1/2 in
  • Thread Type: NPT or BSP
  • Air Valve: Standard and Remote
  • Maximum Flow Rate: 150 gpm (568 lpm)
  • Maximum Discharge Pressure: 120 psi
  • Materials of Construction Available: Aluminum, Stainless Steel, Polypropylene, PVDF, Ductile Iron
  • Pump Weight: 58 lb Aluminum 111 lb Stainless Steel 49 lb Polypropylene 68 lb PVDF 130 lb Ductile Iron
  • Maximum Solids: 0.25 in
  • Port Size: NA
  • Fluid Inlet & Outlet Size: 2 in NPT or BSP or ANSI-Flange





Back

Features & Benefits

  • 2 inch Positive Displacement Double Diaphragm Pump
  • Easy-to-service air valve and ball checks
Back

Technical Specifications

Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Ratings & Reviews

No reviews available

Be the first to Write a Review

Models Available
