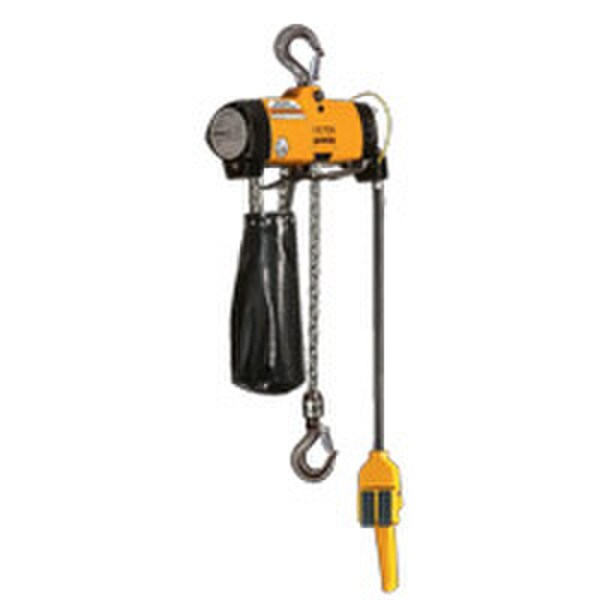

Harrington AS Series Spark Resistant Chain Hoists

Harrington’s AS Series air hoists are built using materials that will reduce or eliminate risk of spark produced by impact or friction in heavy-duty industrial applications. These hoists are ATEX certified spark resistant (Explosive atmospheres that require features that reduce the risk of spark) to level ATEX II 2GD c T5 IIC T100°C and are in compliance with the EU ATEX Directive. AS Series hoists are available in 1/4 and 1/2 Ton capacities in either pendant, cord or twist rod control and are also able to operate without lubrication in the air supply where required.

Spark Resistant Features:

• ATEX certified spark resistant to ATEX level II 2GD c T5 IIC T100°C
• Stainless steel load chain
• Stainless steel top and bottom hooks
• Stainless steel hook latches
• Stainless steel hardware

Reliable Features

• Heavy-duty disc brake
• Reliable vane motor
• Planetary gearing system
• Lightweight and compact cast aluminum body
• Upper / lower limit switches

Hazardous Location Examples

• Petrochemical/chemical processing
• Pharmaceutical processing
• Grain handling, storage and processing
• Paint booths (liquid, powders)
