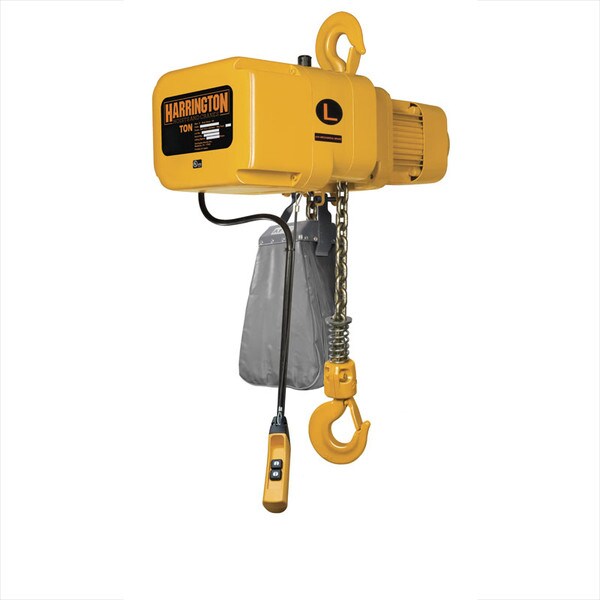

Harrington NER Electric Chain Hoists
Overview
We have added several new features and upgrades to our NER/ER Series of electric chain hoists. These improvements to our high quality, full-featured hoist include the latest technologies making these models absolutely the best electric chain hoists in the market today.
Features:- UL Listed
- Certified and listed to UL 1340 "Standard for Hoists."
- Easy Access Suspension
- External pins allow for quick change from hook to lug for trolley mount configurations on most models.
- Green Initiative
- Built smarter without the use of harmful materials. Environmentally friendly. RoHS compliant.
- Notched Hook and Latch System
- Provides positive closing and improves resistance against lateral forces.
- Limit Switches
- Low-profile upper and lower limit switches are standard.
- Extended Chain Life
- Decreased chain wear as a result of a revolutionary heat treatment process, improved material and chain size.
- "The Guardian": Smart Brake Technology
- A current driven electromagnetic brake does not release unless the motor is energized. 10 year hoist brake warranty.
ER2 and NER2 Differences. Harrington ER Series Hoists and availavble in two versions: NER and ER. ER series have a mechanical load brake/friction clutch combination while the NER2 has a friction clutch mechanism that provides over winding protection.
Features & Benefits
- Smart Brake Technology
- State-Of-The-Art Chain Technology
- UL Listed
- Easy Access Suspension
Technical Documents
Harrington NER Series Hoist Owners Manual (PDF)- Harrington NER Electric Hoists Manual (PDF)
- Harrington NER Electric Chain Hoists Options (PDF)

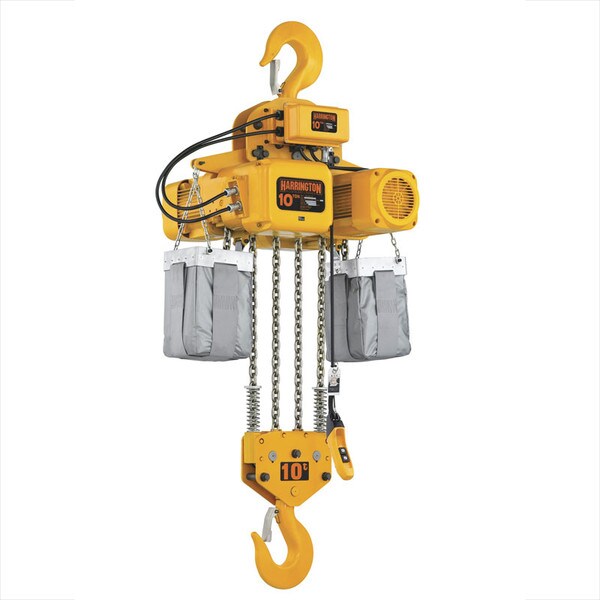

- Harrington NER Large Capacity Electric Hoists Brochure (PDF)
- Harrington NER Large Capacity Electric Hoists manual (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
