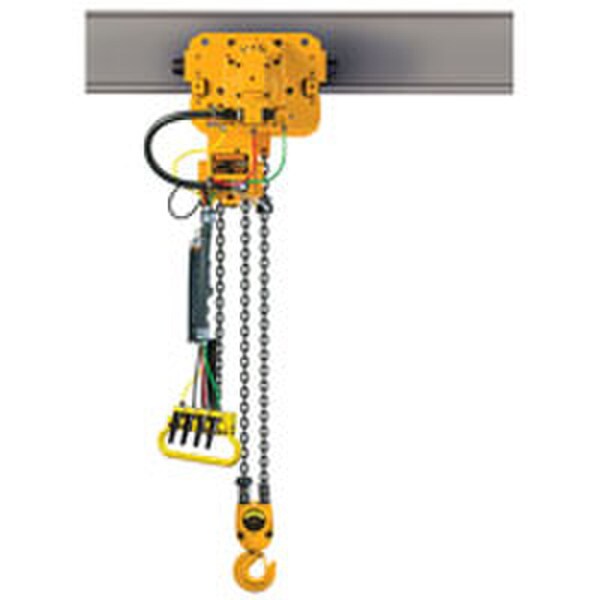

Harrington TCRP Air Trolley Hoists
Overview
Harrington’s TCR Series air hoists offer the benefit of lifting heavier loads while maintaining low headroom and a continuous duty cycle. These hoists are best suited for use in foundries, assembly lines, construction sites and many other demanding applications.
Features:- Unlimted Duty Cycle - For continuous operation
- Spring-Loaded Multi-Vane Motor Design - Permits very fine feathering control
- High Strength Cast Iron Housing - Proven weather resistant and durable in harsh environments
- Airtight Hoist - Results in efficient use of air
- Comfortable Noise Levels - External muffler reduces noise level to 80dBA @ 1 yd. with no load
- Heavy Duty Self-Adjusting Brake - For precise braking action
- Standard Upper & Lower Limit Stops - Prevents over-travel of hook in either direction
- Built-in Load Limiter - Pre-set to stop lifting when load is over rated capacity Adjustable
- Wear Resistant Load Chain - Grade 80, case-hardened for superior strength
Features & Benefits
- Compact yet heavy-duty MCR trolleys are able to transport heavy loads in the most demanding or harsh environments.
- Built for long and demanding work shifts. With its unlimited duty cycle, you can continually operate the hoist without worrying about damage from too many starts per hour.
- The TCR’s adjustable, built-in load limiter detects overload automatically and blocks air flow for lifting.
- Proven to be resistant in harsh environments, the TCR’s high-strength cast-iron housing provides a rugged body that stands up to the toughest demands.
Technical Documents
Harrington TCR Series Hoist Owners Manual (PDF)- Harrington TCR Series Air Hoists Manual (PDF)
- Ingersoll Rand LC2A060S Hook Mount Drawing (PDF)
- Ingersoll Rand LC2A060Q Hook Mount Drawing (PDF)
- Ingersoll Rand LC2A250Q Hook Mount Drawing (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
