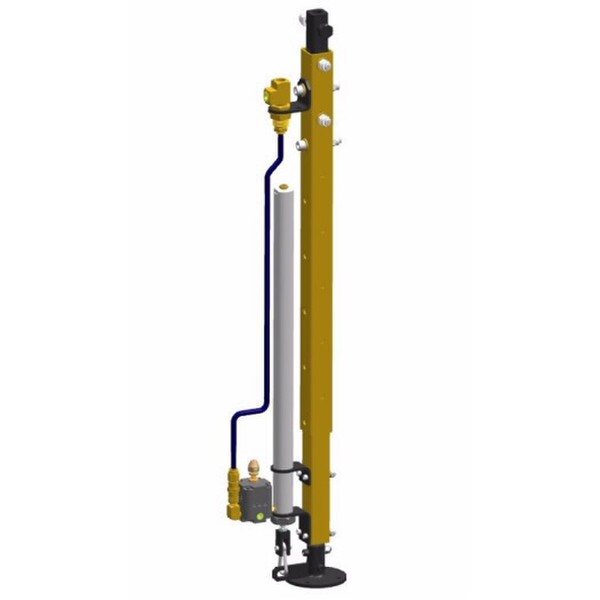

IRZ-TT-100 | Torque Tube, 100 Nm

(0)No Reviews yet

Torque and Lift Tubes allow parts to be lifted, lowered, moved and brought into optimum position with minimal force required by the operator. These lift tubes relieve the operator of both part weight and torque reaction of up to 100 Nm, increasing productivity.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Torque and Lift Tubes allow parts to be lifted, lowered, moved and brought into optimum working position with minimal force required by the operator. These lift tubes relieve the operator of both part weight and torque reaction up to 100 Nm, resulting in increased workplace productivity. Capable of handling loads up to 60 lbs. Featuring a pneumatic cylinder for lift assist with 20'' travel.
Back

Features & Benefits

  • Features 4 delrin wheels for torque reaction and side loading in all 4 directions
  • Superior linear bearings for effortless vertical travel and maintenance free operation
  • Optional 360 degree 3-axis or fixed 2-axis tool holder clamps are available
  • Optional single or dual trolley suspension kits for suspending from an overhead rail system
Back

Technical Specifications

Type
Torque Tube
Manufacturer
Ingersoll Rand
SKU
IRZ-TT-100
Travel (mm)
508
Max Torque (Ft Lb)
74
Max Torque (Nm)
100
Weight (lbs)
40
Travel (in)
20
Capacity (lbs)
60
