95B065250 | IS-40-W7-S3 | Inductive Sensor, Square 40 X 40Mm Plastic - Flush 15Mm - Ac/Dc No - Pg

Datalogic IS-40-W7-S3, 95B065250

Inductive Sensor, Square 40 X 40Mm Plastic - Flush 15Mm - Ac/Dc No - Pg

The Inductive sensors of the 8x8 Square line are made in a rectangular container 8x8 mm, available in version with cable or M8 connector, for a different and easier mounting in a sturdy nickel-plated brass housing.

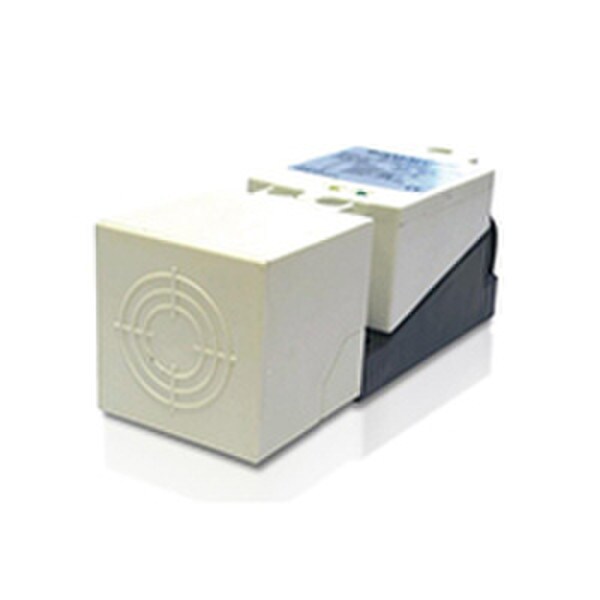

The Inductive sensors of the 40x40 Square line are made in a rectangular container in plastic PBT of dimensions 40x40 mm. They are versatile and flexible for various applications in the machinery thanks to the connector rotable in any direction, allowing to have the cable always directed in the desired direction. Inside the sensor are present the wiring terminals, accessible by removing pressure plates to self-lifting. The sensor head is adjustable in 5 different positions for easy adaptation to any application.

• PBT (resin) or Nickel-plated Brass housing
• Operating distance: 1.5 ?à 15 mm
• 40x40 mm or 8x8 mm active face dimension
• Connections type: Cable, M8 connector or Terminal Block
• Connections: 2 or 3 wires
• Outputs: PNP, PNP/NPN, NO, NC, NO/NC
• IP67 proection

• Automatic machines
• Packaging lines
• Transportation lines
• Automatic warehouses
• Automotive
