Overview

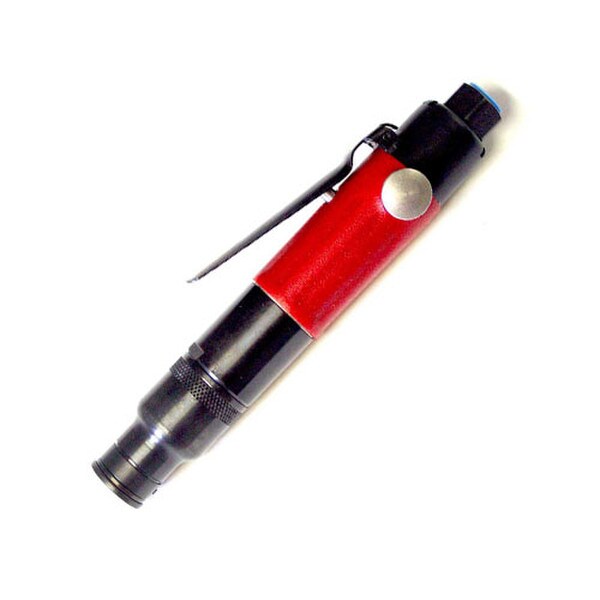

Ingersoll Rand 1/4 in. 20 in lb Inline Air Screwdriver, 1500 rpm, Push-to-Start

SA024C-15-Q

The most accurate of all air screwdrivers, adjustable shut-off (or automatic shut-off) screwdrivers are designed for critical fastening applications involving plastics, composites, or metals that require precise torque control.

The final fastening torque is set by adjusting the compression of a clutch spring within the front section of the tool. This class of tools is recommended for hard or soft joints or for self-tapping or sheet metal screws provided tapping torque does not exceed the final torque.

Automatic shut-off tools also reduce air consumption and are the most ergonomically sound of all air screwdrivers.

Torque output: 3 to 40 in.-lbs ( .34 to 4.5 Nm ) Automatic Shut-off Clutch

Features
  • Recommended for assembling where precise torque control is required.

Back

Technical Specifications

Model
SA024C-15-Q
Stat 1
Push To Start
Stat 2
3.0 - 20.0 In Lb
Drive size
1/4'' hex
Manufacturer
Ingersoll Rand
Length (mm)
219
Length (In)
8.6
SKU
SA024C-15-Q
Stock Code
3
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
3.0
Max Torque (In Lb)
20.0
Min Torque (Nm)
0.34
Max Torque (Nm)
2.30
UPC
00663023018065
Max Free Speed (rpm)
1500
Weight (lbs)
1.3
Actuation
Push-to-Start
Series
20
Drive Type
1/4 in. hex
Air Cons. @ Free Speed (cfm)
15
Spindle Offset (in)
0.6
