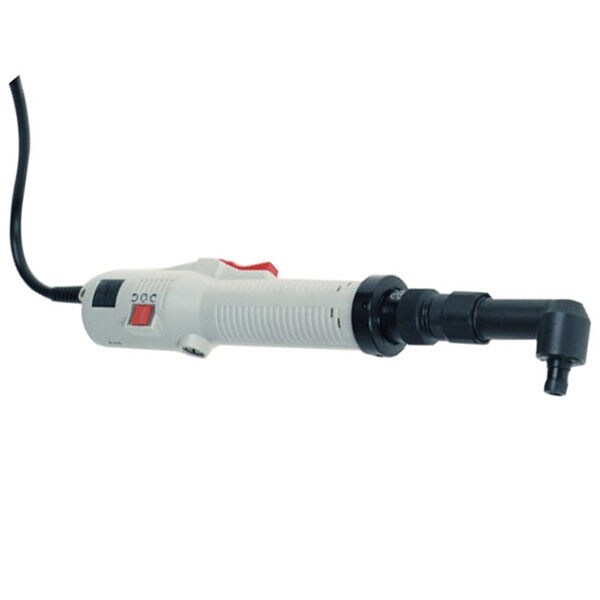

Introducing the Ingersoll Rand ES60T2S3 115V Electric Angle Screwdriver, a powerful and versatile tool designed to streamline your assembly processes. This electric screwdriver combines speed, performance, and ergonomic design to deliver exceptional results.

  • Min Torque(In Lb): 6
  • Max Torque(In Lb): 23
  • Drive Size: 1/4'' hex
  • Free Speed(RPM): 650
  • Voltage: 115V
  • Start Type: Lever Start
Back

Features & Benefits

  • Variable Soft-Start Adjustment: The ES60T2S3 features a variable soft-start adjustment, allowing you to control the speed and torque output with precision, ensuring optimal performance for different fastening tasks.
  • RoHS Compliant: This electric screwdriver meets RoHS standards, ensuring minimal environmental impact and compliance with global regulations.
  • 1/4'' Hex Drive: The 1/4'' hex drive size offers versatility and compatibility with a wide range of fastening applications.
  • Ergonomic Design: Designed with comfort in mind, the ES60T2S3 features a lightweight and well-balanced body, reducing user fatigue during extended use.
Back

Technical Specifications

Model
ES60T2S3
Stat 1
Lever Start
Stat 2
23.0 In Lb Max Torque
Drive size
1/4'' hex
Manufacturer
Ingersoll Rand
Length (In)
16.89
Free Speed (RPM)
650
SKU
ES60T2S3
Stock Code
3
Power Source
115VAC
Style
Angle Head
Clutch Type
Auto Shut Off
Min Torque (In Lb)
6
Max Torque (In Lb)
23
Min Torque (Nm)
0.68
Max Torque (Nm)
2.6
UPC
00663023007670
Max Free Speed (rpm)
650
Weight (lbs)
2.1
Series
ES
Spindle
1/4 in. hex QC
Drive Type
1/4'' hex
Voltage
115V
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the ES60T2S3?

The ES60T2S3 has a torque range from 6 to 23 in lbs (0.68 - 2.6 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the ES60T2S3, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ES60T2S3 is an Angle Head model with a Auto Shut Off clutch.
Most clutch controlled assembly tools have an accuracy / repeatability of +/- 10% however this is most commonly determined by the type of joint. A soft joint is going to be very forgiving while the tool can react adversely to a hard joint.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
