ES100T | 115V Pistol Grip Electric Screwdriver, Trigger, 15 - 40 in lbs

(0)No Reviews yet
$779.96
$1211
$431.03999999999996
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

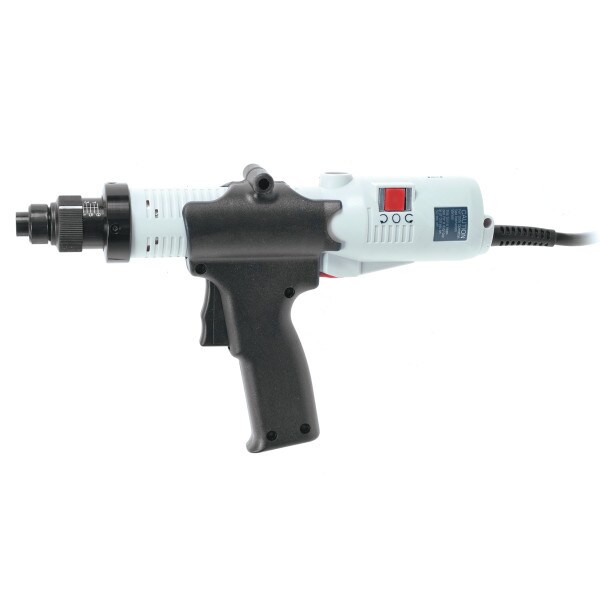

Introducing the Ingersoll Rand ES100T 115V Pistol Grip Electric Screwdriver, a powerful and versatile assembly tool designed to streamline your fastening tasks. This electric screwdriver combines speed, performance, and ergonomic design to deliver exceptional results.

  • Min Torque(In Lb): 15
  • Max Torque(In Lb): 40
  • Drive Size: 1/4'' hex
  • Free Speed(RPM): 400
  • Voltage: 115V
  • Start Type: Trigger
Back

Features & Benefits

  • Variable Soft-Start Adjustment: The ES100T features a variable soft-start adjustment, allowing you to control the speed and torque output with precision, ensuring optimal performance for different fastening tasks.
  • RoHS Compliant: This electric screwdriver meets the strict RoHS environmental standards, ensuring minimal environmental impact.
  • 1/4'' Hex Drive: The 1/4'' hex drive size provides versatility and compatibility with a wide range of screwdriver bits.
  • Ergonomic Design: Designed with comfort in mind, the ES100T features a pistol grip handle that reduces fatigue and enhances user comfort during extended use.
Back

Technical Specifications

Model
ES100T
Stat 1
Lever Start
Stat 2
40.0 In Lb Max Torque
Drive size
1/4'' hex
Manufacturer
Ingersoll Rand
Length (In)
10
Free Speed (RPM)
400
SKU
ES100T
Stock Code
3
Power Source
115VAC
Style
Pistol Grip
Clutch Type
Auto Shut Off
Min Torque (In Lb)
15
Max Torque (In Lb)
40
Min Torque (Nm)
1.9
Max Torque (Nm)
4.5
UPC
00663023007526
Max Free Speed (rpm)
400
Weight (lbs)
1.68
Series
ES
Spindle
1/4 in. hex QC
Drive Type
1/4'' hex
Voltage
115V
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

360° Product View

Back

Frequently Asked Questions

What is the torque range of the ES100T?

The ES100T has a torque range from 15 to 40 in lbs (1.9 - 4.5 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the ES100T, are most commonly used for medium to heavy assembly applications where precise torque control is required. The ES100T is a Pistol Grip model with a Auto Shut Off clutch.
Most clutch controlled assembly tools have an accuracy / repeatability of +/- 10% however this is most commonly determined by the type of joint. A soft joint is going to be very forgiving while the tool can react adversely to a hard joint.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
