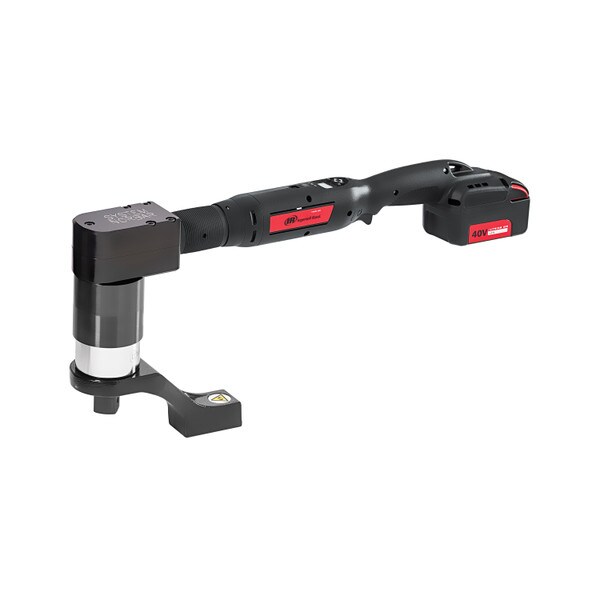

QXX2A52T0594PS12 | 40V Cordless Torque Multiplier, 88 - 438 ft lbs, 3/4'', 802.15.4 and Bluetooth

(0)No Reviews yet

Meet the tool that’s taking torque to the next level - Ingersoll Rand's new QX Series 40V Cordless Torque Multiplier, packed with all the power and precision to perform like no wrench has before.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Ingersoll Rand 20V Cordless Angle Torque Multiplier, 88 - 438 ft lbs, 3/4 in. square drive

20V Cordless Angle Torque Multiplier, 88 - 438 ft lbs, 3/4 in. square drive, model QXX2A52T0594PS12 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Cordless Angle Torque Multiplier available elsewhere for a lower price? Contact Customer Service about price matching!

QXX2A52T0594PS12 by Ingersoll Rand

The QXX2A52T0594PS12 Cordless Angle Torque Multiplier runs on a 20V Lithium-Ion Battery. This Ingersoll Rand Angle Head Cordless Angle Torque Multiplier also runs on a 3/4 in. square drive.

With a free speed of 14 rpm, the QXX2A52T0594PS12 Cordless Angle Torque Multiplier has a torque range of 88 - 438 ft lbs. The QXX2A52T0594PS12 commiciates via Wireless connection.

The QXX2A52T0594PS12 Cordless Angle Torque Multiplier communicates via Wireless

Note: BL2010, BL2012 or BL2022 battery required to use the QXX2A52T0594PS12

BL2022
Back

Features & Benefits

  • Integrates with other QX Series tools in your assembly operations with wireless connection to the INSIGHTqcx Controller
  • Share tightening data via email for post processing verification through the free INSIGHT Connect app
  • Store 1,200 records on-board and easily download and share them through the free INSIGHT Connect app
  • Easy pairing to any Apple iOS or Google Android device to program torque, angle or both without t he need for a Wi-Fi network
  • Longevity in harsh applications with steel reinforced motor housing
  • Cool under pressure, Internal fan operates independently of drive motor enabling repeated high torque operation without overheating
  • Bolt after bolt performance. Tighten up to 300 bolts to 995 foot pounds per charge on the IQV 40 Series battery
Back

Technical Specifications

Model
QXX2A52T0594PS12
Type
Cordless Torque Multiplier
Drive size
3/4'' square
Manufacturer
Ingersoll Rand
Length (mm)
216
Length (In)
8.5
Min Torque (Ft Lb)
88
Free Speed (RPM)
14
SKU
QXX2A52T0594PS12
Stock Code
3
Style
Angle Head
Max Torque (Ft Lb)
438
Min Torque (Nm)
119
Max Torque (Nm)
594
Communication
802.15.4 and Bluetooth
Weight (lbs)
10.9
Series
QXM
Drive Type
Square
Voltage
40V
