Overview

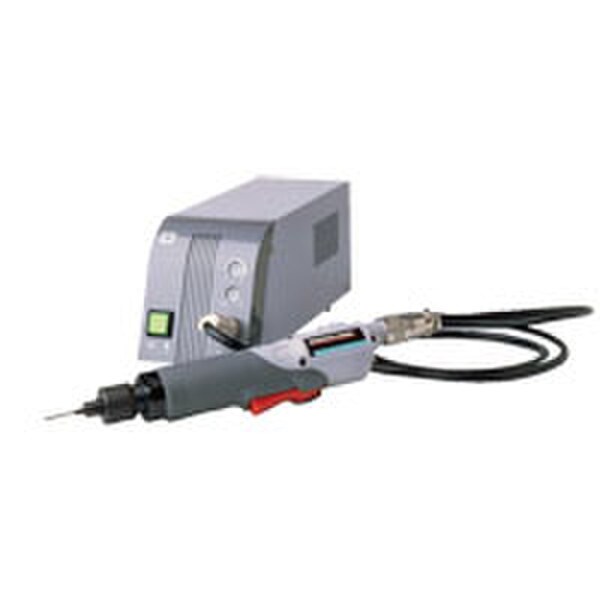

Introducing the Ingersoll Rand EL0109B-IR 24V Electric Screwdriver, a versatile and user-friendly tool designed to enhance your low-torque assembly applications. Engineered by Ingersoll Rand, this electric screwdriver combines precision, comfort, and durability to streamline your fastening tasks.

  • Min Torque(In Lb: 0.26
  • Max Torque(In Lb: 1.3
  • Drive Size: 4 mm
  • Free Speed(RPM): 950
  • Voltage: 24V
  • Start Type: Lever Start
Back

Features & Benefits

  • Low Torque Range: The EL0109B-IR offers a torque range of 0.26 to 1.3 in lbs (0.03 to 0.15 Nm), making it ideal for delicate fastening tasks that require utmost precision.
  • Lever Start Mechanism: Equipped with a lever start, this electric screwdriver provides precise control and ease of use. Simply apply gentle pressure on the lever to initiate fastening, ensuring consistent and accurate results.
  • Electrostatic Discharge (ESD) Safe and RoHS Compliant: This electric screwdriver is ESD safe and RoHS compliant, making it suitable for use in sensitive electronic assembly environments. It minimizes the risk of electrostatic discharge, protecting delicate components from damage.
  • Ergonomic Design: The EL0109B-IR boasts a well-balanced, compact, and lightweight design, ensuring user comfort during prolonged use. Its ergonomic grip minimizes fatigue and allows for effortless handling.
Back

Technical Specifications

Model
EL0109B
Stat 1
Lever Start
Stat 2
0.26 -1.30 In Lb
Drive size
4 mm
Manufacturer
Ingersoll Rand
Controller
EC24N
Length (In)
9.25
Free Speed (RPM)
950
SKU
EL0109B
Stock Code
3
Power Source
EC24N
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
0.26
Max Torque (In Lb)
1.3
Min Torque (Nm)
0.03
Max Torque (Nm)
0.15
UPC
00663023007069
Power supply
EC24N
Max Free Speed (rpm)
950
Weight (lbs)
0.7
Series
VersaTec
Spindle
4mm QC
Drive Type
4 mm
Voltage
24V
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the EL0109B?

The EL0109B has a torque range from 0.26 to 1.3 in lbs (0.03 - 0.15 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the EL0109B, are most commonly used for medium to heavy assembly applications where precise torque control is required. The EL0109B is an Inline model with a Auto Shut Off clutch.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
