EL0410BC-SS-ESD | 24V Electric Screwdriver, Low Torque, Lever Start, 1.7 - 3.5 in lbs, 1000 rpm

(0)No Reviews yet
$775.20
$1204
$428.79999999999995
Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

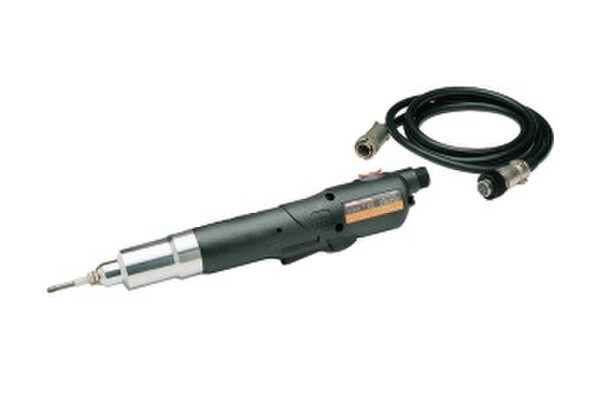

Introducing the Ingersoll Rand EL0410BC-SS-ESD 24V Electric Screwdriver, a powerful and versatile tool designed to enhance your assembly operations. This electric screwdriver combines precision, efficiency, and comfort to streamline your fastening tasks.

  • Min Torque(In Lb: 1.7
  • Max Torque(In Lb: 3.5
  • Drive Size: 4 mm
  • Free Speed(RPM): 1000
  • Voltage: 24V
  • Start Type: Lever Start

Requires a Controller/Power Supply EC24N-ESD sold separately.

Back

Features & Benefits

  • Low Torque Range: With a torque range of 1.7 to 3.5 in lbs (0.19 to 0.4 Nm), this electric screwdriver is ideal for delicate fastening applications, ensuring precise control and preventing overtightening.
  • Ergonomic Grip: The EL0410BC-SS-ESD features an ergonomic grip that provides maximum comfort and reduces fatigue during prolonged use.
  • Electrostatic Discharge (ESD) Safe: This electric screwdriver is ESD safe, making it suitable for use in sensitive electronic assembly environments where static electricity can damage components.
  • Compact and Lightweight Design: Its compact and lightweight construction allows for easy maneuverability and access to tight spaces, making it ideal for intricate assembly tasks.
Back

Technical Specifications

Model
EL0410BC-SS-ESD
Stat 1
Soft Stop
Stat 2
1.7 - 3.5 In Lb
Drive size
4 mm
Manufacturer
Ingersoll Rand
Controller
EC24N-ESD
Length (mm)
267
Length (In)
10.25
Free Speed (RPM)
1000
SKU
EL0410BC-SS-ESD
Stock Code
3
Power Source
EC24N-ESD
Style
Inline
Clutch Type
Auto Shut Off
Min Torque (In Lb)
1.7
Max Torque (In Lb)
3.5
Min Torque (Nm)
0.19
Max Torque (Nm)
0.4
UPC
663023129648
ESD Compliant
Yes
Power supply
EC24N-ESD
Max Free Speed (rpm)
1000
Weight (lbs)
0.9
Series
VersaTec
Spindle
4mm QC
Drive Type
4 mm
Voltage
24V
Back

Technical Documents

We are always wanting to provide more information! In need of a technical document? Let us know!

Back

Frequently Asked Questions

What is the torque range of the EL0410BC-SS-ESD?

The EL0410BC-SS-ESD has a torque range from 1.7 to 3.5 in lbs (0.19 - 0.4 Nm).

Did you know that the average max torque range of an Electric Torque Screwdriver can range from 3 - 5 Nm or 27 - 45 in lbs?

Electric Torque Screwdrivers like the EL0410BC-SS-ESD, are most commonly used for medium to heavy assembly applications where precise torque control is required. The EL0410BC-SS-ESD is an Inline model with a Auto Shut Off clutch.
Most clutch controlled assembly tools have an accuracy / repeatability of +/- 10% however this is most commonly determined by the type of joint. A soft joint is going to be very forgiving while the tool can react adversely to a hard joint.
There is a mechanical adjustment on the tool but you will require a digital torque tester with a run down adapter (joint simulator) to validate the output torque of the tool. Please click here for a link to our selection of torque testers.
Most manufacturers have a one year warranty, free from defects. However, the Flex Warranty offers two more additional years of coverage.
