5LL1 | Air Drill, Inline, 1/4 in. chuck, 2300 rpm
Overview

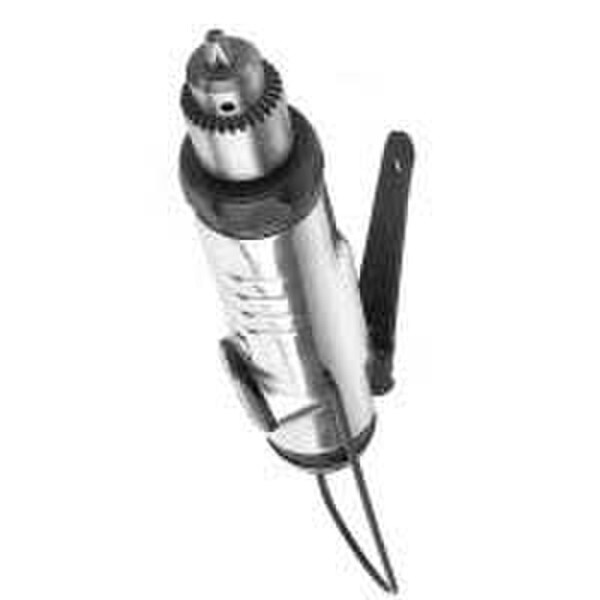

Ingersoll Rand Air Drill, Inline, 1/4 in. chuck, 2300 rpm
Air Drill, Inline, 1/4 in. chuck, 2300 rpm, model 5LL1 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
5LL1 by Ingersoll Rand
The 5LL1 Air Drill has a 1/4 in. chuck and can run up to 2300 rpm
Features & Benefits
- Made with a high quality chuck
- Easily able to withstand harsh environments
- Optimized power-to-weight ratio
Technical Specifications
Model
5LL1
Type
Drill
Manufacturer
Ingersoll Rand
Length (In)
8.1
Free Speed (RPM)
2300
SKU
5LL1
Stock Code
3
Style
Inline
Max Torque (In Lb)
39.8
UPC
663023130859
Max Free Speed (rpm)
2300.00
Weight (lbs)
2
Actuation
Lever
Series
5
Bit Holder
1/4''
Stall Torque (in lb)
39.8
Chuck Capacity (in)
1/4
Rated Power (hp)
0.4
Reversible
No
Technical Documents
- Ingersoll Rand 5R Series Air Drill Product Information (PDF)
- Ingersoll Rand Series 5 Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
- Ingersoll Rand Series 5 Air Drill Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
