1P09ST4 | Air Drill, Pistol Grip, 1/4 in. chuck, 900 rpm
Overview

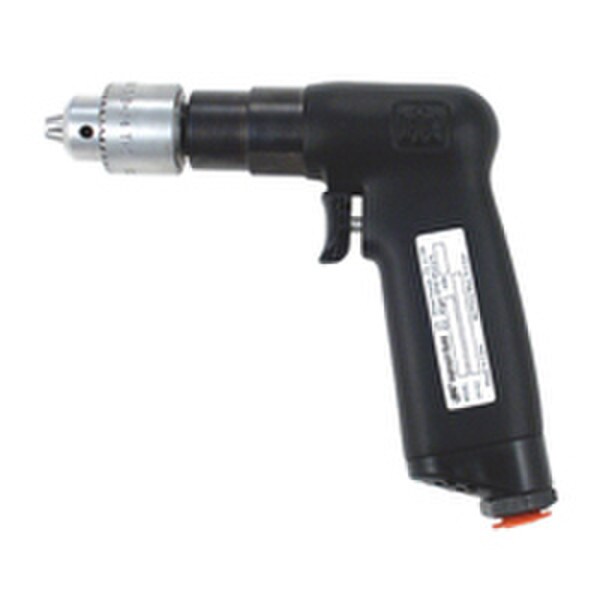

Ingersoll Rand Air Drill, Pistol Grip, 1/4 in. chuck, 900 rpm
Air Drill, Pistol Grip, 1/4 in. chuck, 900 rpm, model 1P09ST4 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Drill available elsewhere for a lower price? Contact Customer Service about price matching!
1P09ST4 by Ingersoll Rand
The 1P09ST4 Air Drill has a 1/4 in. chuck and can run up to 900 rpm
Features & Benefits
- Variable Speed Control
- Optimized power-to-weight ratio
- Double row ball bearings construction allows you to make precise, concentric holes
Technical Specifications
Model
1P09ST4
Type
Drill
Manufacturer
Ingersoll Rand
Length (In)
6.75
Free Speed (RPM)
900
SKU
1P09ST4
Stock Code
3
Style
Pistol Grip
UPC
663023130682
Max Free Speed (rpm)
900
Weight (lbs)
1.5
Side to Center (in)
21/32
Actuation
Trigger
Series
1
Bit Holder
1/4''
Stall Torque (in lb)
67
Air Inlet NPT (in)
1/4" NPT
Chuck Capacity (in)
1/4
Reversible
No
Technical Documents
- Ingersoll Rand Series 1 Air Drill Product Information (PDF)
- Ingersoll Rand Series 1 Air Drill Parts Breakdown (PDF)
- Ingersoll Rand Air Drill Safety Information (PDF)
- Ingersoll Rand Series 1 Air Drill Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
