132 | Air Hammer, 1725 bpm, 4 in. stroke
Overview

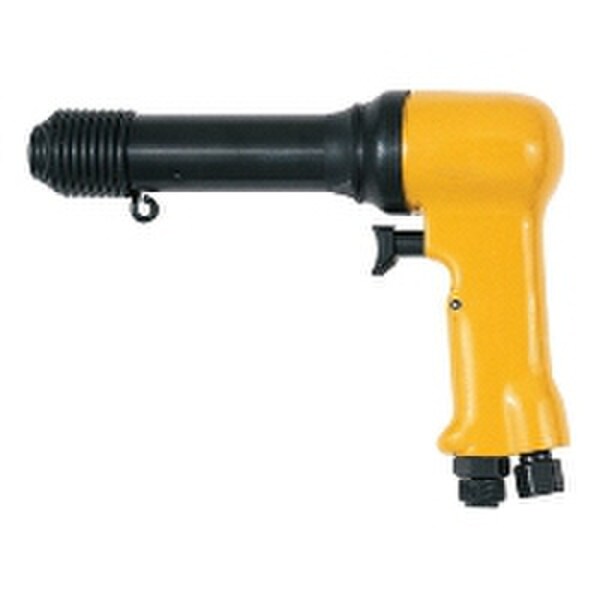

Ingersoll Rand Air Hammer, 1725 bpm, 4 in. stroke
Air Hammer, 1725 bpm, 4 in. stroke, model 132 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Hammer available elsewhere for a lower price? Contact Customer Service about price matching!
132 by Ingersoll Rand
At 1725 blows per minute, the R1120 Air Hammer has a 0.56 in. Bore and 4 in. stroke.
Features & Benefits
- Alloyed steel barrel and heat-treated piston for longer life
- Built-in power regulator and trigger control
Technical Specifications
Model
132
Type
Air Hammer
Manufacturer
Ingersoll Rand
Length (mm)
216
Length (In)
8.5
SKU
132
Stock Code
3
Shank
Round
Style
Pistol Grip
UPC
00663023000572
Shank Type
Round
Weight (lbs)
3.4
Shank Opening
Round
Bore Diameter (in)
0.56
Blows Per Minute (bpm)
1725
Chisel Shank Diameter (in)
0.401
Stroke Length (in)
4
Series
Super Duty
Technical Documents
- Ingersoll Rand 132 Air Hammer Product Information (PDF)
- Ingersoll Rand 132 Air Hammer Parts Breakdown (PDF)
- Ingersoll Rand Air Percussive Tool Safety Information (PDF)
- Ingersoll Rand 132 Air Hammer Maintenance Information (PDF)
