QS1L17S5D | Air Screwdriver, Lever Start, 3 - 27.3 in lbs, 1710 rpm

(0)No Reviews yet

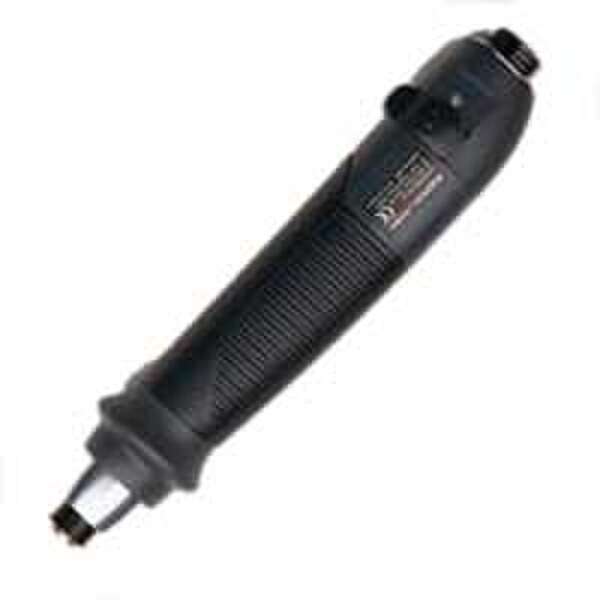

The Q2 Series Inline Adjustable Shut-off screwdriver is great for any fastening applications involving plastics, composites and metals that require precise torque control.

Warning: California Proposition 65 | Trade Regulations Advisory Notice
Item Ships free
Order total must be over $999.99, under 20 lbs and shipping within continental USA

Get your tool under our Flex Warranty!

We will fix it or replace it.

FLEX Warranty keeps your tools safe when manufacturer warranties come up short. Bad luck deserves good coverage.

*Manufacturer warranty only cover you for so long. FLEX Warranty extends and enhances your coverage for up to two years.

Non-Returnable
Spare Parts, Specialty and Custom items are non-returnable and non-refundable
Back

Overview

Ingersoll Rand Air Screwdriver, Lever Start, 3 - 27.3 in lbs, 1710 rpm

Air Screwdriver, Lever Start, 3 - 27.3 in lbs, 1710 rpm, model QS1L17S5D by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Air Screwdriver available elsewhere for a lower price? Contact Customer Service about price matching!

QS1L17S5D by Ingersoll Rand

Nothing truly adds up to the power of an Ingersoll Rand Air Screwdriver. The Ingersoll Rand QS1L17S5D is an Air Screwdriver with a Adjustable Shut Off clutch and starts via Lever Start. This Ingersoll Rand Air Screwdriver has a 1/4 in. hex QC spindle and a free speed of 1710 rpm. The Ingersoll Rand QS1L17S5D Air Screwdriver can get up to 27.3 in lbs of torque; an Air Screwdriver that you need in your shop.

Back

Features & Benefits

  • Compact, well-balanced and lightweight
  • Accurate, fast and reliable
  • Maximum operator comfort
  • Built to succeed cycle after cycle.
Back

Technical Specifications

Model
QS1L17S5D
Type
Air Screwdriver
Drive size
1/4'' hex
Manufacturer
Ingersoll Rand
Length (mm)
239
Length (In)
9.5
Free Speed (RPM)
1710
SKU
QS1L17S5D
Stock Code
1
Start Type
Lever Start
Style
Inline
Clutch Type
Adjustable Shut Off
Min Torque (In Lb)
3
Max Torque (In Lb)
27.3
Min Torque (Nm)
0.30
Max Torque (Nm)
3.08
Max Free Speed (rpm)
1710
Weight (lbs)
1.53
Side to Center (in)
0.87
Actuation
Lever Start
Series
Q2
Spindle
1/4 in. hex QC
