172L | Chisel Scaler, Inline, 9/16 in. stroke, 5500 bpm
Overview

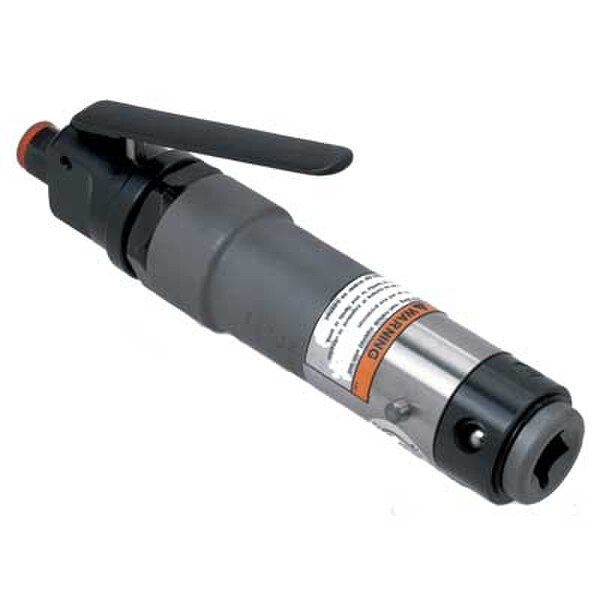

Ingersoll Rand Chisel Scaler, Inline, 9/16 in. stroke, 5500 bpm
Chisel Scaler, Inline, 9/16 in. stroke, 5500 bpm, model 172L by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Chisel Scaler available elsewhere for a lower price? Contact Customer Service about price matching!
172L by Ingersoll Rand
The 172L Chisel Scaler, has an Inline design. With a 9/16 stroke, this Ingersoll Rand Chisel Scaler can go up to a speed of 5500 rpm
Features & Benefits
- Adjustable bayonet-type needle housing lock allows for easy adjustment without special tools.
- Rubber faced throttle valve to ensure positive sealing of internal components
- Compact, well balanced and low vibration maximize operators comfort
Technical Specifications
Model
172L
Type
Chisel Scaler Kit
Manufacturer
Ingersoll Rand
Length (In)
7.63
SKU
172L
Stock Code
3
Style
Inline
UPC
00663024000380
Weight (lbs)
3.69
Handle Type
Lever
Bore Diameter (in)
0.94
Blows Per Minute (bpm)
5500
Series
172
Length (in)
7.63
Piston Stroke (in)
0.56
Bore (in)
0.94
Vibration (m/s2)
11.6
Air Inlet NPT (in)
1/4
Min Hose Size (mm)
8
Air Cons. @ Load (L/min)
12
Technical Documents
Ingersoll Rand 172 182 Series Scaler Product Information (PDF)- Ingersoll Rand 172 182 Series Scaler Parts Breakdown (PDF)
- Ingersoll Rand Air Percussive Tool Safety Information (PDF)
- Ingersoll Rand 172 182 Series Scaler Maintenance Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
