2235QTiMAX | Impact Wrench, 1/2 in. square drive, 900 ft lbs
Overview

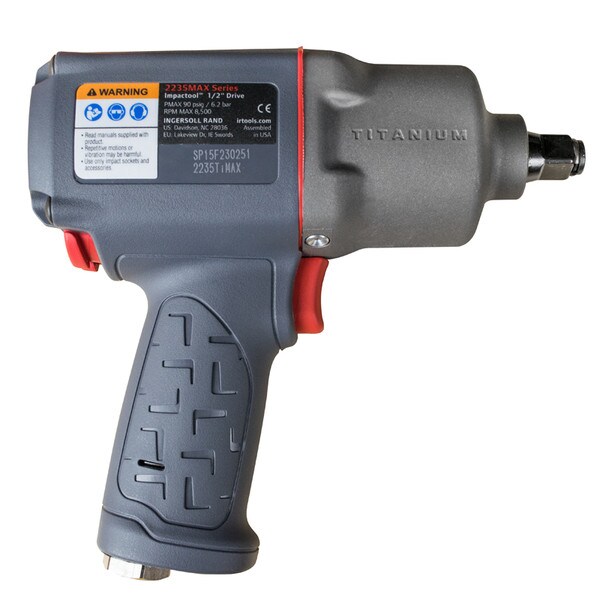

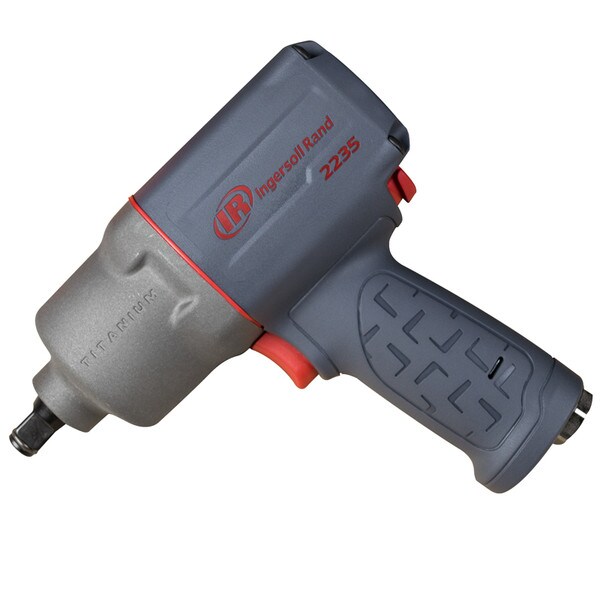

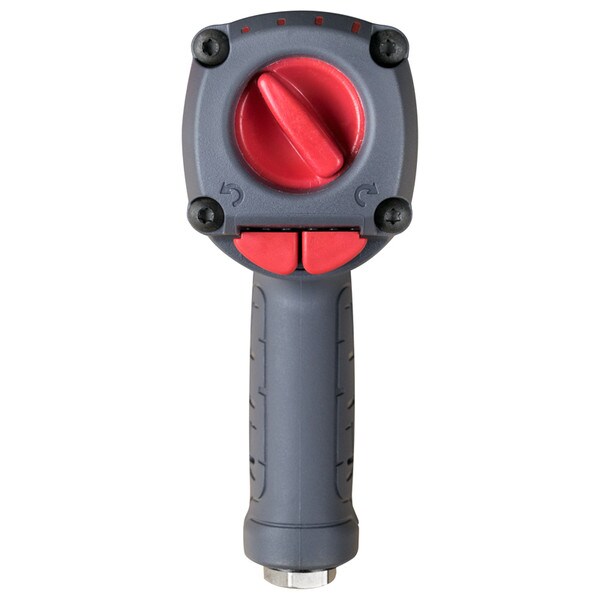

Ingersoll Rand Impact Wrench, 1/2 in. square drive, 900 ft lbs
Impact Wrench, 1/2 in. square drive, 900 ft lbs, model 2235QTiMAX by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Impact Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
2235QTiMAX by Ingersoll Rand
The 2235QTiMAX Impact Wrench has a 1/2 in. square drive and a free speed of 8500 rpm.
With the ability to go up to 1220 bpm, The Ingersoll Rand 2235QTiMAX can go up to a maximum torque of 900 ft lbs.
Features & Benefits
- 1350 ft-lb nut-busting torque
- Finely tuned impact mechanism and motor deliver more torque, durability, and efficiency
- Hog-Ring
- Optimized for the vehicle repair industry, heavy trucks, tire lanes, fleet maintenance, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction
Technical Specifications
Model
2235QTiMAX
Drive size
1/2'' square
Manufacturer
Ingersoll Rand
Length (In)
7.6
Free Speed (RPM)
8500
SKU
2235QTIMAX
Stock Code
3
Style
Pistol Grip
Max Torque (Ft Lb)
1350
Max Torque (Nm)
1760
UPC
663023000000
Max Free Speed (rpm)
8500
Min Hose Size (in)
3/8
Weight (lbs)
4.7
Blows Per Minute (bpm)
1220
Series
2235TiMAX
Air Cons. @ Load (cfm)
24
Retainer Type
Hog-Ring
Vibration (m/s2)
9
Air Inlet NPT (in)
1/4
Air Cons. @ Load (L/min)
680
Capacity (in)
3/4
Technical Documents
Ingersoll Rand 2235 Series Impact Wrench Brochure (PDF)- Ingersoll Rand Air Impact Wrench Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
