MOV005AA | .75 Hp, 6800 RPM, Direct Drive Multi Vane Air Motor
Overview

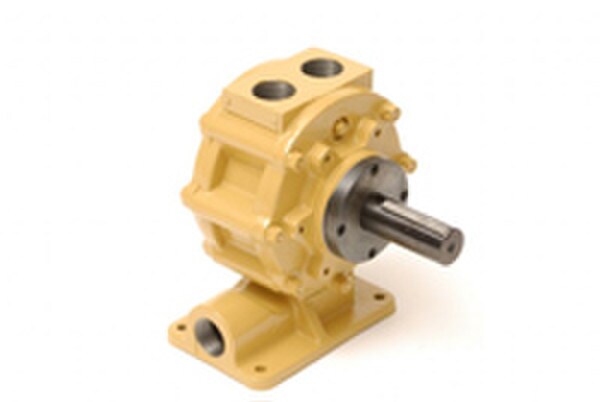

Ingersoll Rand MOV005AA
.75 Hp, 6800 Rpm, Direct Drive Multi Vane Air Motor
Direct drive multi-vane air motors from 0.75 hp to 10.5 hp with speed adjustability through air controls.
Features:- Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
- Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive environments.
- Instantly reversible.
- Compact and portable: Get maximum horsepower in minimum size.
- Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
- Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean air supply and proper lubrication.
- No shock starts: Air cushioned start-up cuts stress on your equipment.
- Mounting options: Face and foot mount.
Technical Specifications
Manufacturer
Ingersoll Rand
SKU
MOV005AA
Stock Code
3
Max Free Speed (rpm)
6800
Weight (lbs)
6.5
Starting Torque (ft lb)
1.65
Air Cons. @ Max Power (scfm)
30
Speed at Max Power (rpm)
3300
Stall Torque (ft lb)
2.2
Rated Power (hp)
.75
Stall Torque (Nm)
2.98
Technical Documents
Ingersoll Rand MVA M0V0 Series Air Motors Specifications (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
