PF20A-ACP-SVT | 2'' Cast Iron Flap Valve Diaphragm Pump, 172 gpm
Overview

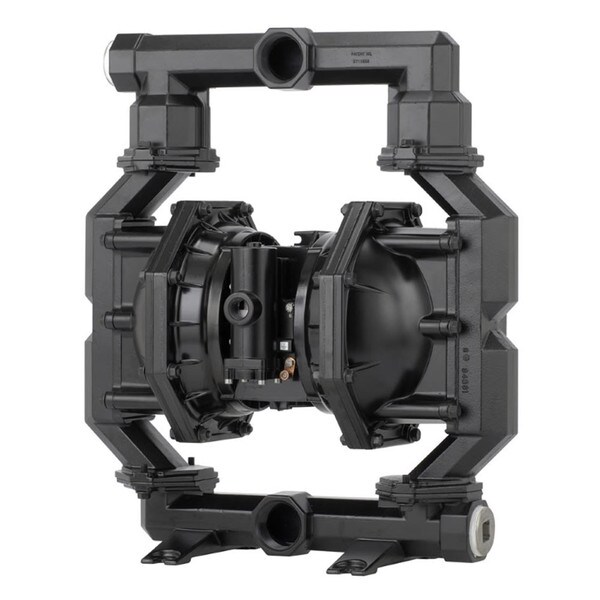

ARO 2 In. Cast Iron Flap Valvediaphragm Pump, 172 Gpm
PF20A-ACP-SVT
PF20A-ACP-SVT, 2 In. Cast Iron Flap Valvediaphragm Pump, 172 Gpm by ARO
ARO PF20A-ACP-SVT by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PF20A-ACP-SVT is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PF20A-ACP-SVT? Contact Flexible Assembly Systems at 800.696.7614 today!
ARO PF20A-ACP-SVT Pump Data
- Fluid Section Type: Aluminum
- Displacement Per Cycle: 1.4 gallons
- Fluid Connection: N.P.T.F. Thread
- Wetted Parts: Cast Iron
- Seat Material: Stainless Steel
- Flap Material: Viton
- Diaphragm Material: PTFE / Santoprene
Features & Benefits
- Able to handle 2'' semi-solids and 3/4'' solid materials.
- Simul-Shift™ valve provides ultra-positive, reliable shift signal
- ARO's patented 'Unbalanced' air valve ensures no-stall operation
Technical Specifications
Seats
Stainless Steel
Material
Cast Iron
Diaphragm
PTFE/Santoprene
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Aluminum
Type
Diaphragm Pump
Max Air Pressure (psi)
120
Max Fluid Flow (gpm)
172
Manufacturer
ARO
SKU
PF20A-ACP-SVT
Diameter - mm
2''
Stock Code
3
Connection
NPTF
Weight (lbs)
161
Ratio
1:1
Hardware
Plated Steel
Series
Flap Valve
Diameter - in
2
