Overview

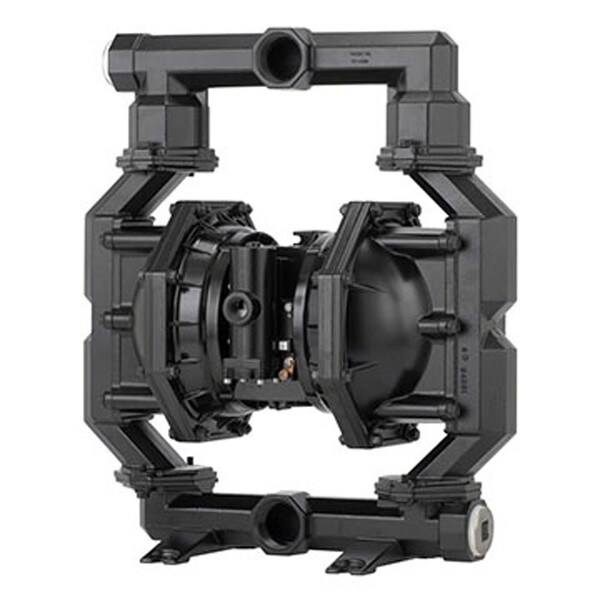

ARO 2 In. Aluminum Flap Valvediaphragm Pump, 172 Gpm

PF20A-BAS-SGG

PF20A-BAS-SGG, 2 In. Aluminum Flap Valvediaphragm Pump, 172 Gpm by ARO

ARO PF20A-BAS-SGG by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PF20A-BAS-SGG is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PF20A-BAS-SGG? Contact Flexible Assembly Systems at 800.696.7614 today!

ARO PF20A-BAS-SGG Pump Data
  • Fluid Section Type: Aluminum
  • Displacement Per Cycle: 1.4 gallons
  • Fluid Connection: BSP Thread
  • Wetted Parts: Aluminum
  • Seat Material: Stainless Steel
  • Flap Material: Nitrile
  • Diaphragm Material: Nitrile
Back

Features & Benefits

  • Able to handle 2'' semi-solids and 3/4'' solid materials.
  • Simul-Shift™ valve provides ultra-positive, reliable shift signal
  • ARO's patented 'Unbalanced' air valve ensures no-stall operation
Back

Technical Specifications

Seats
Stainless Steel
Material
Aluminum
Diaphragm
Nitrile
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Aluminum
Type
Diaphragm Pump
Max Air Pressure (psi)
120
Max Fluid Flow (gpm)
172
Manufacturer
ARO
SKU
PF20A-BAS-SGG
Diameter - mm
2''
Stock Code
3
Connection
BSP
Weight (lbs)
74
Ratio
1:1
Hardware
Stainless Steel
Series
Flap Valve
Diameter - in
2
