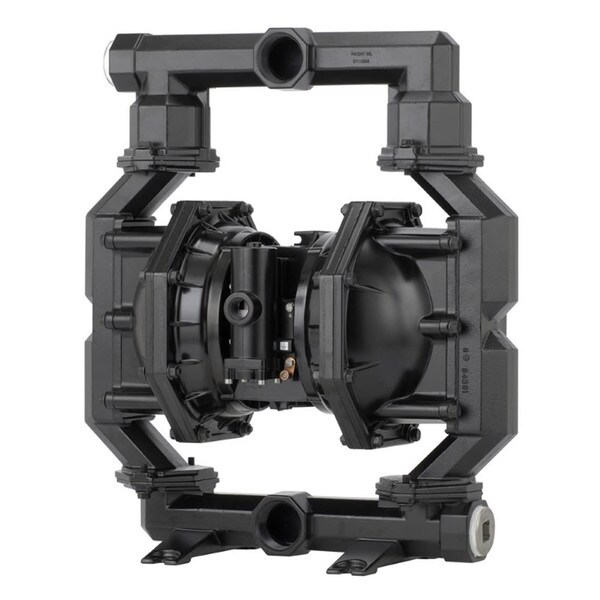

PF20A-BCP-SGG | 2'' Cast Iron Flap Valve Diaphragm Pump, 172 gpm
Overview
ARO 2 In. Cast Iron Flap Valvediaphragm Pump, 172 Gpm
PF20A-BCP-SGG
PF20A-BCP-SGG, 2 In. Cast Iron Flap Valvediaphragm Pump, 172 Gpm by ARO
ARO PF20A-BCP-SGG by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PF20A-BCP-SGG is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PF20A-BCP-SGG? Contact Flexible Assembly Systems at 800.696.7614 today!
ARO PF20A-BCP-SGG Pump Data
- Fluid Section Type: Aluminum
- Displacement Per Cycle: 1.4 gallons
- Fluid Connection: BSP Thread
- Wetted Parts: Cast Iron
- Seat Material: Stainless Steel
- Flap Material: Nitrile
- Diaphragm Material: Nitrile
Features & Benefits
- Able to handle 2'' semi-solids and 3/4'' solid materials.
- Simul-Shift™ valve provides ultra-positive, reliable shift signal
- ARO's patented 'Unbalanced' air valve ensures no-stall operation
Technical Specifications
Seats
Stainless Steel
Material
Cast Iron
Diaphragm
Nitrile
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Aluminum
Type
Diaphragm Pump
Max Air Pressure (psi)
120
Max Fluid Flow (gpm)
172
Manufacturer
ARO
SKU
PF20A-BCP-SGG
Diameter - mm
2''
Stock Code
3
Connection
BSP
Weight (lbs)
161
Ratio
1:1
Hardware
Plated Steel
Series
Flap Valve
Diameter - in
2
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
