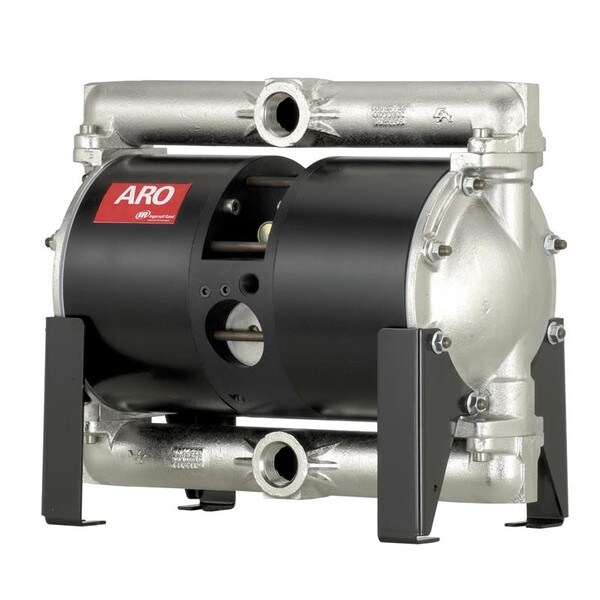

PH10A-ASS-SST | 1'' Aluminum High Pressure Diaphragm Pump, 26 gpm
Overview
ARO 1 In. Stainless Steel, High Pressure Diaphragm Pump, 160 Gpm
PH10A-ASS-SST
PH10A-ASS-SST, 1 In. Stainless Steel, High Pressure Diaphragm Pump, 160 Gpm by ARO
ARO PH10A-ASS-SST by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PH10A-ASS-SST is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PH10A-ASS-SST? Contact Flexible Assembly Systems at 800.696.7614 today!
ARO PH10A-ASS-SST Pump Data
- Fluid Section Type: Aluminum
- Displacement Per Cycle: 1.4 gallons
- Fluid Connection: NPFF
- Wetted Parts: Stainless Steel
- Seat Material: Stainless Steel
- Diaphragm Material: PTFE
Features & Benefits
- Can produce up to 300 psi, at about half the flow rate of a standard diaphragm pump by utilizing two power pistons that drive the fluid handling diaphragms
- Generates nearly 300 psi on standard 100 psi shop air
- deal transfer of paint recirculation and high solid coatings, inks, adhesives, filled material, drilling grout, caulking, solvent reclamation and resins
- Stall-Free
Technical Specifications
Dimension D
9x14x17
Seats
316 SS
Material
Aluminum
Balls
316 SS
Diaphragm
316 SS
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Aluminum
Type
Diaphragm Pump
Max Air Pressure (psi)
200
Max Fluid Flow (gpm)
26
Manufacturer
ARO
SKU
PH10A-ASS-SST
Diameter - mm
1''
Stock Code
3
Connection
1-1/2'' NPTF
Weight (lbs)
101
Ratio
3:1
Hardware
Plated Steel
Series
High Pressure
Diameter - in
1
Technical Documents
Ingersoll Rand 3 1 High Pressure Pumps Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
