Overview

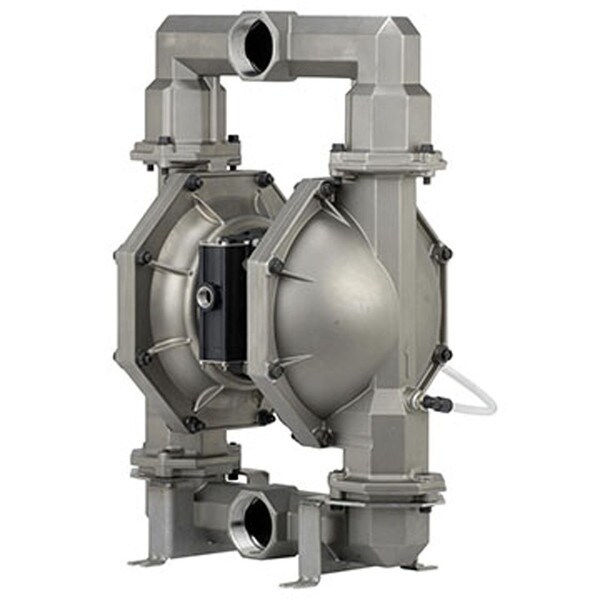

ARO 2 In. Stainless Steel, High Pressurediaphragm Pump, 160 Gpm

PH20F-BSP-STT-B

PH20F-BSP-STT-B, 2 In. Stainless Steel, High Pressurediaphragm Pump, 160 Gpm by ARO

ARO PH20F-BSP-STT-B by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PH20F-BSP-STT-B is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PH20F-BSP-STT-B? Contact Flexible Assembly Systems at 800.696.7614 today!

ARO PH20F-BSP-STT-B Pump Data
  • Fluid Section Type: Stainless Steel
  • Displacement Per Cycle: 1.4 gallons
  • Fluid Connection: BSP
  • Wetted Parts: Stainless Steel
  • Seat Material: Stainless Steel
  • Ball Material: PTFE
  • Diaphragm Material: PTFE
Back

Features & Benefits

  • Bolted construction eliminates problems associated with leaking band-clamps while also reducing maintenance cost
  • Simul-Shift™ and Quick Dump™ valve technology for stall free and ice free operation
  • utilizes effective surface areas of both diaphragms to double output pressure.
  • Modular major valve design for easy repair and maintenance
Back

Technical Specifications

Seats
Stainless Steel
Material
Stainless Steel
Balls
PTFE
Diaphragm
PTFE/Santoprene
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Stainless Steel
Type
Diaphragm Pump
Max Air Pressure (psi)
200
Max Fluid Flow (gpm)
63
Manufacturer
ARO
SKU
PH20F-BSP-STT-B
Diameter - mm
2''
Stock Code
3
Connection
1-1/2'' BSP
Ratio
2:1
Hardware
Plated Steel
Series
High Pressure
Diameter - in
2
