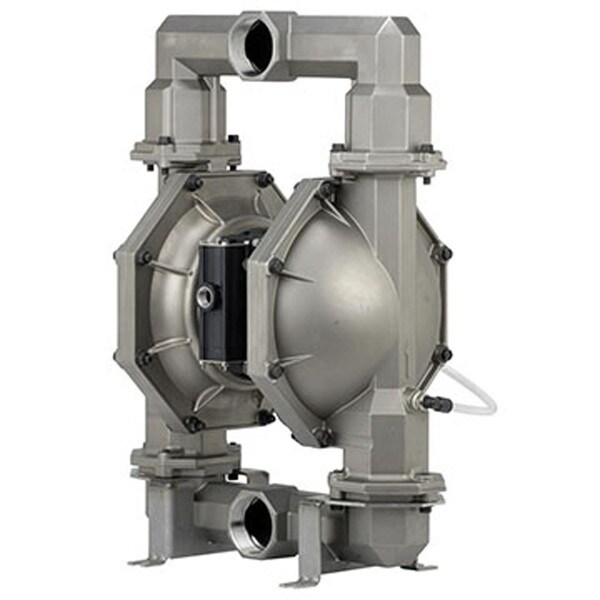

PH30F-ASP-SCC-C | 3'' Stainless Steel High Pressure Diaphragm Pump, 63 gpm
Overview
ARO 3 In. Stainless Steel, High Pressurediaphragm Pump, 160 Gpm
PH30F-ASP-SCC-C
PH30F-ASP-SCC-C, 3 In. Stainless Steel, High Pressurediaphragm Pump, 160 Gpm by ARO
ARO PH30F-ASP-SCC-C by is an ideal pump that you'll need for your application. Composed on high-grade compoents and pieces, the ARO PH30F-ASP-SCC-C is a diaphragm that is matched second-to-none. Need help with configuring an ARO diaphragm pump or ordering the PH30F-ASP-SCC-C? Contact Flexible Assembly Systems at 800.696.7614 today!
ARO PH30F-ASP-SCC-C Pump Data
- Fluid Section Type: Stainless Steel
- Displacement Per Cycle: 1.4 gallons
- Fluid Connection: NPFF
- Wetted Parts: Stainless Steel
- Seat Material: Stainless Steel
- Ball Material: Hytrel
- Diaphragm Material: Hytrel
Features & Benefits
- Bolted construction eliminates problems associated with leaking band-clamps while also reducing maintenance cost
- Simul-Shift™ and Quick Dump™ valve technology for stall free and ice free operation
- utilizes effective surface areas of both diaphragms to double output pressure.
- Modular major valve design for easy repair and maintenance
Technical Specifications
Seats
Stainless Steel
Material
Stainless Steel
Balls
Hytrel
Diaphragm
Hytrel
Displacement Per Cycle (gallons)
1.4
Fluid Section Type
Stainless Steel
Type
Diaphragm Pump
Max Air Pressure (psi)
200
Max Fluid Flow (gpm)
63
Manufacturer
ARO
SKU
PH30F-ASP-SCC-C
Diameter - mm
3''
Stock Code
3
Connection
1-1/2'' NPTF
Ratio
2:1
Hardware
Plated Steel
Series
High Pressure
Diameter - in
3
Technical Documents
We are always wanting to provide more information! In need of a technical document? Let us know!
