1207MAX-D4 | Ratchet Wrench, 1/2 in. square drive, 65 ft lb
Overview

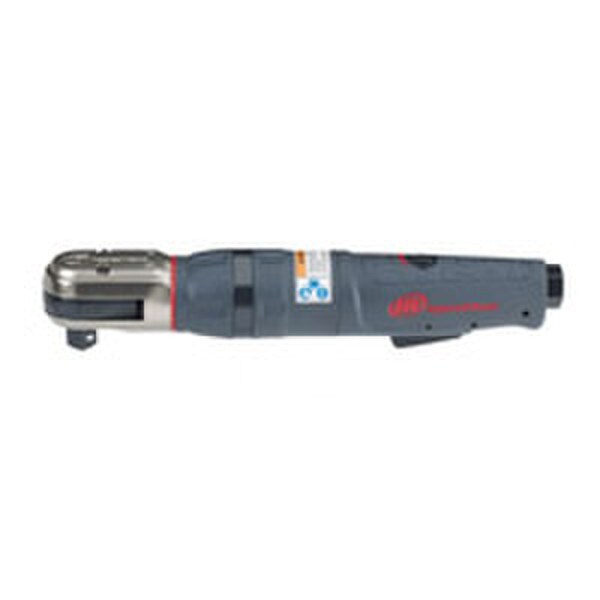

Ingersoll Rand Ratchet Wrench, 1/2 in. square drive, 65 ft lb
Ratchet Wrench, 1/2 in. square drive, 65 ft lb, model 1207MAX-D4 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Ratchet Wrench available elsewhere for a lower price? Contact Customer Service about price matching!
1207MAX-D4 by Ingersoll Rand
The 1207MAX-D4 Ratchet Wrench has a 1/2 in. square drive, a free speed of up to 220 rpm, as well as a maximum torque of 65 ft lbs.
Technical Specifications
Model
1207MAX-D4
Type
Ratchet Wrench
Drive size
1/2'' square
Manufacturer
Ingersoll Rand
Length (In)
10.8
Min Torque (Ft Lb)
10
Free Speed (RPM)
220
SKU
1207MAX-D4
Stock Code
3
Style
Angle Head
Max Torque (Ft Lb)
65
Min Torque (Nm)
14
Max Torque (Nm)
88
UPC
00663023077611
Max Free Speed (rpm)
200
Min Hose Size (in)
3/8
Weight (lbs)
3.19
Actuation
Lever
Series
1207MAX
Air Inlet NPT (in)
1/4
Air Cons. @ Free Speed (cfm)
23
Output Size
85
Technical Documents
- Ingersoll Rand 1207MAX Ratchet Wrench Product Information (PDF)
- Ingersoll Rand 1207MAX Series Ratchet Wrench Parts Breakdown (PDF)
- Ingersoll Rand Air Ratchet Wrench Safety Information (PDF)
We are always wanting to provide more information! In need of a technical document? Let us know!
