YEX-1900 | Transducerized Pulse Tool, 1/2 in. square drive, 43 - 123 ft lbs
Overview

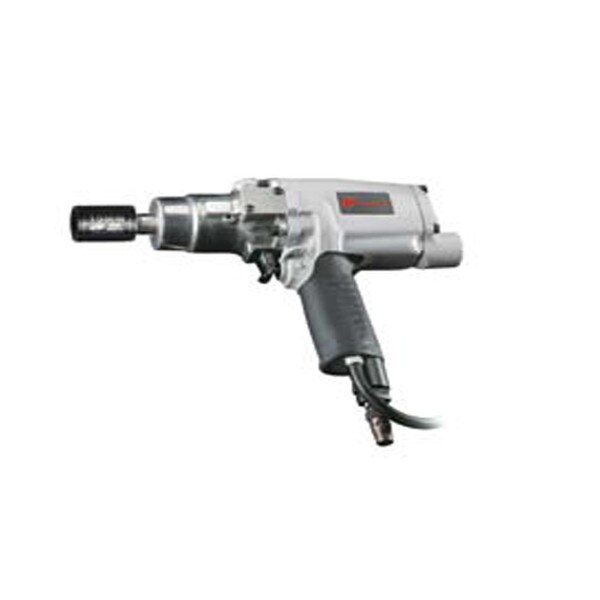

Ingersoll Rand Transducerized Pulse Tool, 1/2 in. square drive, 43 - 123 ft lbs
Transducerized Pulse Tool, 1/2 in. square drive, 43 - 123 ft lbs, model YEX-1900 by Ingersoll Rand. Available to order online from Flexible Assembly Systems. Do you see this Ingersoll Rand Transducerized Pulse Tool available elsewhere for a lower price? Contact Customer Service about price matching!
YEX-1900 by Ingersoll Rand
Transducerized Pulse Tools, like the YEX-1900 by Ingersoll Rand, is a force to be reckoned with. The YEX-1900 Transducerized Pulse Tool can go up to 123 ft lbs of torque and hitting up to 5800 rpm in speed. This Ingersoll Rand Transducerized Pulse Tool also handles M12 size fasteners.
Features & Benefits
- Excellent power to weight ratio
- Reactionless, high-speed operation
- Low noise and vibration
- Accurate, adjustable closed loop torque control
Technical Specifications
Model
YEX-1900
Stat 1
5800 rpm
Stat 2
43 - 123 Ft Lb
Drive size
1/2" square
Manufacturer
Ingersoll Rand
Length (mm)
252
Length (In)
9.9
Min Torque (Ft Lb)
43
Max Air Consumption (cfm)
22.3
Free Speed (RPM)
5800
SKU
YEX-1900
Stock Code
3
Fastener Size
M12
Style
Pistol Grip
Clutch Type
Auto Shut Off
Max Torque (In Lb)
1478.1
Max Torque (Ft Lb)
123
Min Torque (Nm)
58
Max Torque (Nm)
167
Max Free Speed (rpm)
5800
Weight (lbs)
10.2
Series
YEX
Drive Type
1/2 in. square
Weight (kg)
4.61
Technical Documents
Ingersoll Rand Air Pulse Tool Safety Information (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
