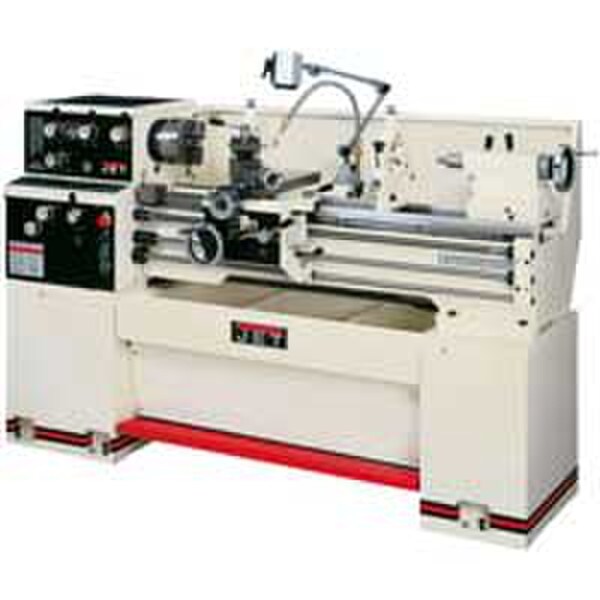

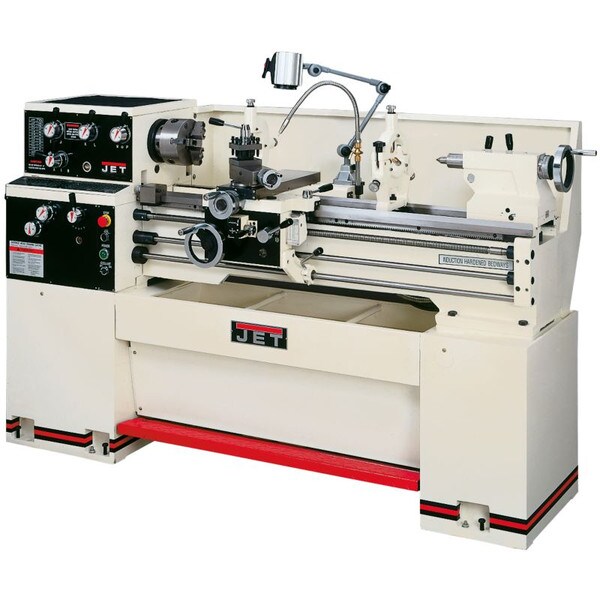

Jet 1340W Series Geared Head Lathes

The JET exclusive Geared head engine lathe design features precision bearings supporting the hardened and ground spindle and splined, instead of keyed shafts are utilized in the constantly oiled gearbox. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

• Uniquely designed exclusively by JET
• Hardened and ground gears are featured in the headstock and gearbox
• D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
• Headstock is constantly oiled during operation
• Splined, not keyed, shafts are utilized
• Gearbox gives larger threading and feed capabilities with no gear changes
• V-way bed design is induction hardened and ground
• Gap bed section provided for larger diameter work
• Independent leadscrew and feed rod
• Spindle actuation control is apron mounted
• Inch-metric dials are standard
• Compound and cross slide have backlash elimination
• Adjustable gibs are incorporated in the carriage and slideways
• Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
• Tolerance test certificate included
• Heavy duty stand
• 6" 3 jaw direct mount chuck with top reversing jaws
• 8" 4 jaw chuck
• 12" face plate
• Four-way tool post
• Steady and follow rest
• Micro-carriage bed stop
• Front removable chip tray
• Spindle jog button
• Foot brake
• Coolant system with splash guard
