321103AK | GHB-1340A With ACU-RITE VUE DRO and CBS-1340A Stand
Overview

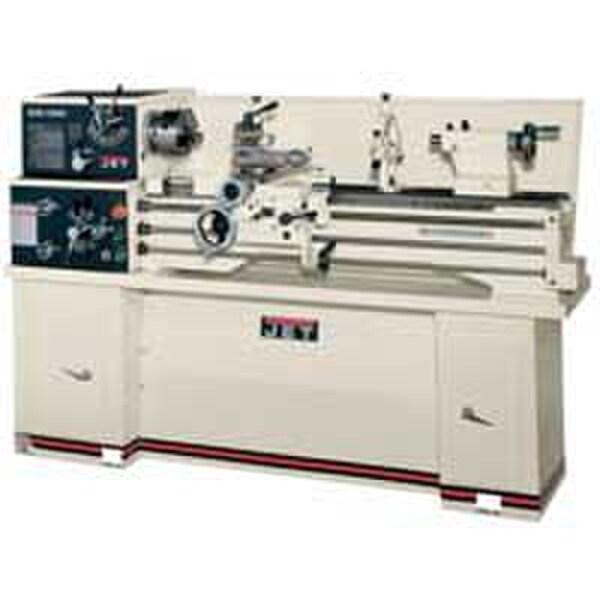

Jet 321103AK
Ghb-1340A With Acu-Rite Vue Dro And Cbs-1340A Stand
JET Geared head bench lathes are designed with an enclosed gearbox for smooth, quiet operation. Precision roller bearings support the hardened and ground spindle resulting in tight tolerances. Each JET Lathe comes loaded with features youÂ’ve come to expect, all backed by the industry leading JET Two Year Warranty
Features:- One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
- Enclosed gearbox design provides smooth, quiet operation
- Fast, easy speed changes
- Hardened and ground gears are featured in the headstock and gearbox
- D1-4 spindle is precision ground for accuracy and supperted by high quality tapered roller bearings
- Headstock is constantly oiled during operation
- Gear box gives wide inch threading and feed capabilities with no gear changes
- V-way bed is induction hardened and ground
- Gap bed section provided for large diameter work
- Independent leadscrew and feed rod
- Spindle actuation control is apronmounted
- Compound and cross slide have backlash elimination
- Adjustable gibs are incorporated in the carriage and slideways
- Tailstock may be offset for turning tapers and includes an inch/metric graduated quill
- Oil pan included
- Tolerance test certificate included
- 6" 3-jaw direct mount scroll chuck with top reversing jaws
- 8" 4-jaw independent chuck
- 12" faceplate
- Four-way tool post
- Steady and follow rest
- Metric change gear
- Centers with headstock center sleeve
- Threading dial
- Tool box with tools
Technical Documents
Jet GHB-1340A Series Geared Head Bench LathesManual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
