321855 | GH-1640ZK With ACU-RITE 200S DRO
Overview
Jet 321855
Gh-1640Zk With Acu-Rite 200S Dro

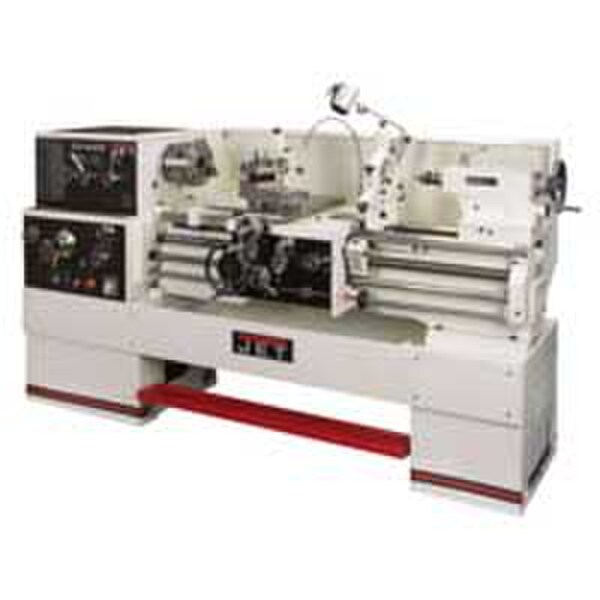

The JET GH1640-ZK-Series lathe takes the best features of our ZX-Series lathes scaled down with a 2" Spindle
Features:- Made by ISO-9001 certified manufacturer
- Universal gearbox allows inch, metric, diametral and module pitch threads without changing gears
- Chrome-Molybdenum headstock gears are hardened, ground and shaved
- Removable gap allows up to 20-7/8" diameter work
- One piece cast-iron base absorbs vibration allowing heavier cuts
- High quality ANSI Class 50 wear resistant cast-iron bed-ways are hardened and ground
- D1-6 spindle is precision ground for accuracy and supportexd by high quality spindle bearings
- Large easy to use foot brake
- Attractive chrome control levers, dials and knobs complete this impressive package
- Standard Equipment
- 8" 3-jaw direct mount scroll chuck with top reversing jaws
- 10" 4-jaw chuck
- 12" Face Plate
- Steady & Follow Rest
- 4 Way tool post
- Micro-carriage bed stop
- Coolant System
- Full length splash guard
- Halogen work lamp
- Tolerance test certificate included
Technical Documents
Jet ZK Series Two Spindle Geared Head Lathes Manual (PDF)We are always wanting to provide more information! In need of a technical document? Let us know!
