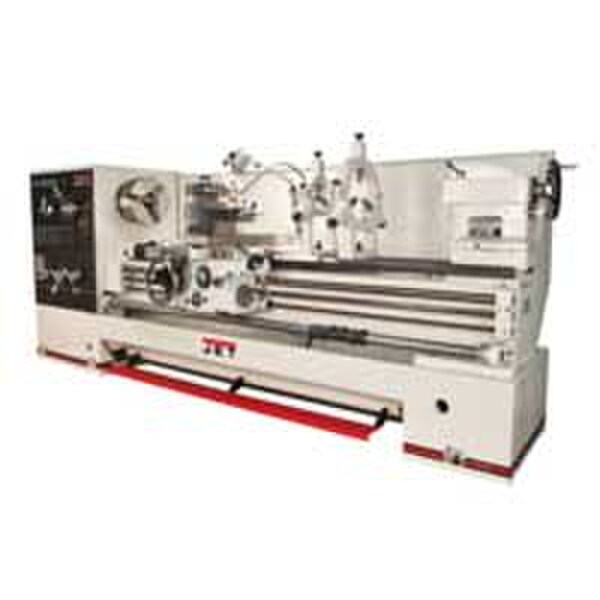

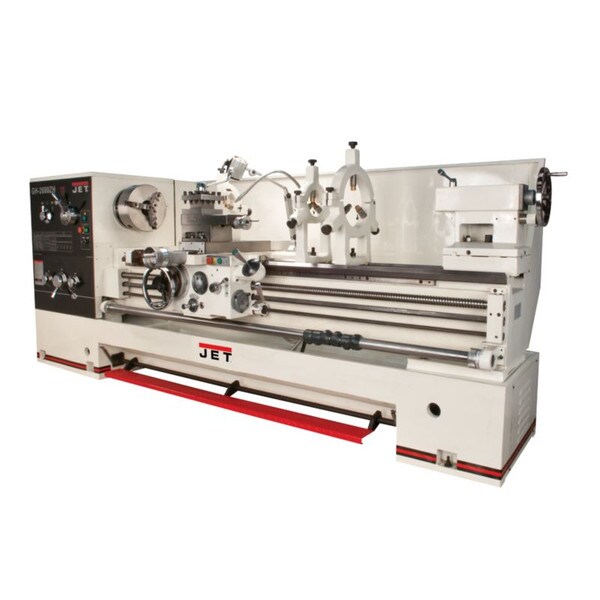

JT9-321860 | 4-1/8'' Large Spindle Bore Geared Head Engine Lathe, 10 HP, 230/460V, 3Ph

Jet 321860

Gh-2680Zh, 4-1/8 Spindle Bore Geared Head Lathe

The JET ZH-Series 4-1/8” spindle bore lathes feature a clutch operated headstock, universal gearbox, and a rapid traverse on the apron that makes the ZH-Series perfect for high-output production applications. Features you've come to expect in a JET Lathe that is backed by the industry-leading JET Two Year Warranty

• Large 4-1/8" Spindle Bore
• Turns 89 different thread sizes
• Clutch operated headstock with all headstock gears hardened and ground
• Bed ways are induction hardened and ground for durability
• Heavy-duty tailstock and quill
• One piece heavy-duty cast iron base and bed
• 12 speeds in range 36-1600 RPM
• Rapid power traverse to cross slide and carriage
• Headstock-gearbox designed for quick setup of thread turning operation without changing gears.
• STANDARD EQUIPMENT:
• 12" 3-Jaw Direct Mount Scroll Chuck with Jaws
• 16" 4-Jaw Chuck
• Face Plate
• 2 Steady Rests
• Follow Rest
• 4 Way Tool Post
• Coolant System
• Full Length Splash Guard
• Halogen Work Lamp
